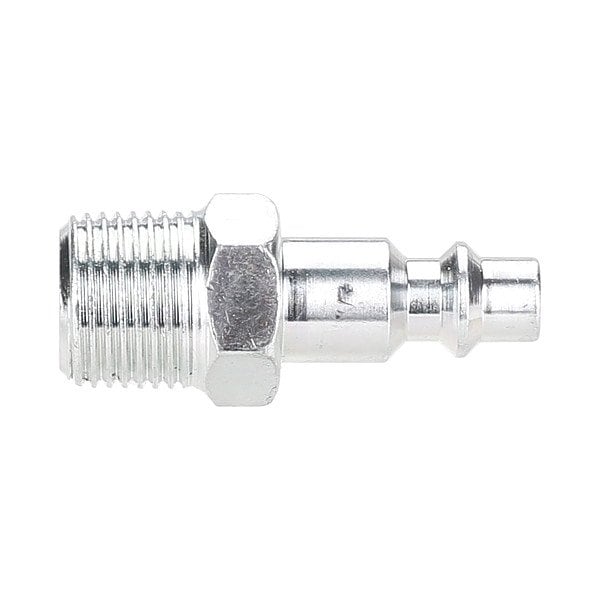

Coupler Plug, (M)NPT, 1/4, Steel
Mfr # 30E659
Zoro # G4869173
Key Features
Specifications
Product Information
- MFR #
- 30E659
- Zoro #
- G4869173
- UPC #
- 190735613009
- Country of Origin
- China
Dimensions
- Hose Fitting Size
- 3/8 in
- Coupling Size
- 1/4 in
- Thread Size
- 3/8"-18
- Body Size - Quick Connect Air Couplings
- 1/4 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 1,132.67 lpm
- Seal Material
- Buna-N
- Includes Valve
- No
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Standards
- ISO 6150, MIL-C-4109F
- Application
- Used on End of Hose or Tool Inlet
- For Use With
- Industrial Interchange Coupler
- Barbed
- No
- Max. Working Pressure @ 70 F
- 300 psi
- Connection Thread Type
- NPT
Description
The SPEEDAIRE - 30E659 is a quick-disconnect hose coupling designed for use on the end of a hose or tool inlet. This male plug fitting connects rapidly and without tools to industrial interchange couplers, providing a connection intended for fluid/air pressure sealing under specified operating conditions. Constructed from steel with a zinc-plated finish, it can handle a maximum flow rate of 1,132.67 L/min at pressures up to 300 psi at 70°F. The fitting features Buna-N seals and operates within a temperature range of -40°F to 150°F. It manufactured to meet ISO 6150 and MIL-C-4109F specifications.
Key Features:
- Material: Steel with zinc-plated coating.
- Hose fitting gender: Male, with 3/8" nominal size and 3/8"-18 thread size.
- Coupling size: 1/4" with 1/4" body size quick-connect air coupling.
- Connection type: NPT thread standard.
- Seal material: Buna-N for seal compatibility for pressure applications within the rated pressure/temperature ranges.
- Max flow rate: 1,132.67 L/min.
- Max working pressure: 300 psi at 70°F.
- Temperature range: -40°F to 150°F.
- Interchange type: Industrial.
- Does not include an integrated valve.
