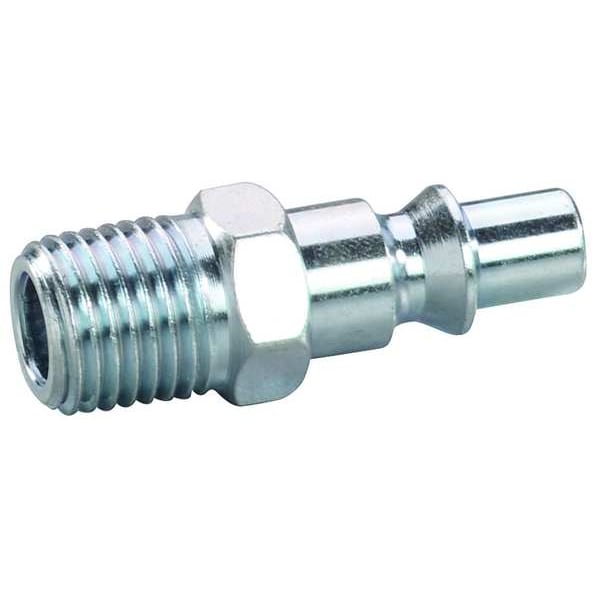

Coupler Plug, (M)NPT, 1/4, Steel
Mfr # 30E716
Zoro # G4977673
Key Features
Specifications
Product Information
Dimensions
Details
Description
The SPEEDAIRE - 30E716 is a quick connect hose coupling designed for rapid, tool-free connection and disconnection of hoses or equipment using an ARO interchange standard. It includes a push/pull locking mechanism for securing the connection to compatible couplers within the specified pressure and temperature ratings, provides a sealed connection when used with compatible mating components per specified pressure/temperature ratings. This steel coupling is compatible with ARO interchange couplers and is intended for installation at the end of a hose or tool inlet using the specified thread connection. It is compatible for use with air and fluid systems within the specified pressure and temperature ranges.
Key Features:
- Coupling component: Plug with male hose fitting gender.
- Connection type: 1/8" -27 NPT threads.
- Body and coupling size: 1/4 in nominal diameter.
- Hose fitting size: 1/8 in.
- Material: Steel construction with zinc-plated finish.
- Seal material: Buna-N for fluid or pressure sealing.
- Maximum flow rate: rated maximum flow rate: 1,132.67 L/min (based on compatible line sizes and conditions).
- Maximum working pressure at 70°F: maximum working pressure at 70°F: 300 psi (when used within specified temperature range and with compatible components).
- Operating temperature range: -40°F to 150°F.
- Color: Silver.
- Does not include an integrated valve.
