Coupler/Plug Kit, NPT, 1/4,304 SS
Mfr # 30E536
Zoro # G4868911
Key Features
Specifications
Product Information
Dimensions
Description

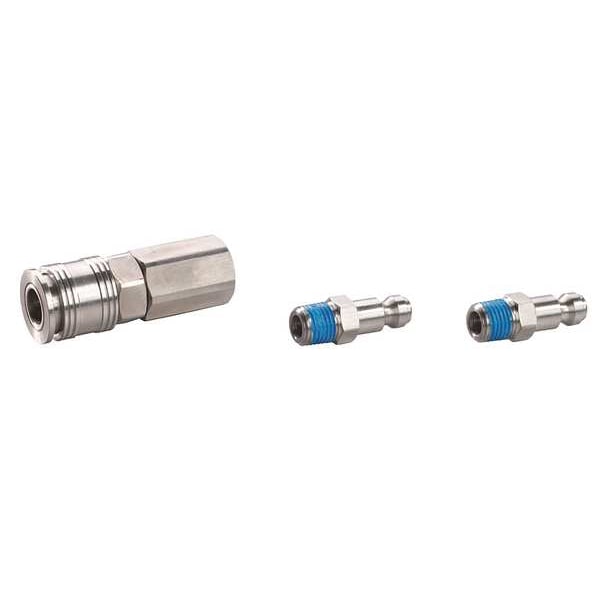

The SPEEDAIRE - 30E536 is a hose coupling set with push-to-connect mechanism designed for tool and hose connections. It includes one female FNPT coupler and two male MNPT plugs, enabling tool-free joining and separation of hoses and accessories. Constructed from 304 stainless steel with a plain finish, this set uses a push-to-connect locking mechanism (per design specifications) and nitrile seals for fluid-tight sealing. Interchangeable with specified Hi Flow couplers and plugs (per stated compatibility), it is rated for a maximum flow rate of 1,132.67 lpm at a working pressure up to 400 psi at 70°F. It is rated operating temperature range: -40°F to 150°F. The set features 1/4" quick connect and hose fitting sizes with 1/4"-18 NPT threads and includes integrated poppet valves.
Key Features:
- Includes (1) FNPT coupler and (2) MNPT plugs with both male and female hose fitting genders.
- Body and coupling size of 1/4" with barb size not applicable and no barbed fittings.
- Push-to-connect coupling locking type for secure connections (per design specifications).
- Material: 304 stainless steel with plain finish.
- Seal material: nitrile with fluid-tight sealing.
- Maximum flow rate: 1,132.67 lpm and max working pressure up to 400 psi at 70°F.
- Temperature range: -40°F to 150°F.
- Valve type: poppet valves integrated into the couplings.
- Interchange type: Hi Flow couplers and plugs (matched compatibility as specified).
- Number of pieces in the set: 3.
