  11. Desiccant Air Dryer, 5-Stage, ISO Class 2, 1/2 in NPT, 30 cfm, 250 psi Max Op Pressure

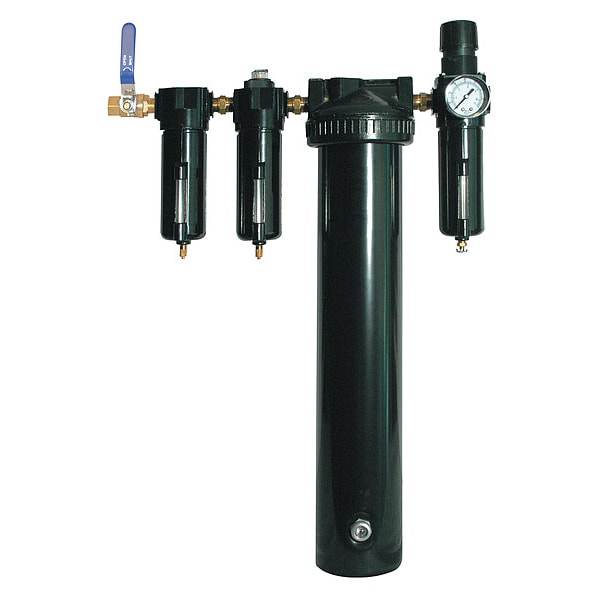

Speedaire Desiccant Air Dryer, 5-Stage, ISO Class 2, 1/2 in NPT, 30 cfm, 250 psi Max Op Pressure 2YNL6 - main

Desiccant Air Dryer, 5-Stage, ISO Class 2, 1/2 in NPT, 30 cfm, 250 psi Max Op Pressure

  • Mfr # 2YNL6

  • Zoro # G1436976

product price: $671.99
/ea
Free Shipping & Returns

Key Features

ISO Class
2
Inlet/Outlet NPTF (In.)
1/2
Type
Dry Air
Max. Operating PSI
250
Overall Height
27 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2YNL6
Zoro #
G1436976
UPC #
190735611302
Country of Origin
United States

Dimensions

Overall Height
27 in
Overall Width
18 1/4 in
Length (In.)
15 1/2 in
Bowl Size - Air Treatment
9.0 oz, 128.0 oz
Width (In.)
18 1/4 in
Height (In.)
27 in
Connection Size - Air Treatment
1/2 in NPT
Bowl Size (Lb.)
6.7
Overall Length
15 1/2 in
Air Outlet Size
1/2 in
Air Inlet Size
1/2 in

Details

Item
Desiccant Air Dryer
ISO Class
2
Inlet/Outlet NPTF (In.)
1/2
Type
Dry Air
Max. Operating PSI
250
Dew Point
-40 Degrees F
Application
Dry Air
Bowl Material - Air Treatment
Metal
Desiccant Material
Silica Gel
Max. Operating Temp. (F)
120 Degrees F
Total Capacity (Cu.-Ft.)
12,500
Max. Flow - Air Treatment
30 cfm
Element Material
Sintered Bronze/paper pleaded
Dew Point (Deg. F)
-30
Dew Point - Air Treatment
-30 Degrees F
For Removal Of
Debris, Dirt, Oil, Oil Vapors, Pipe Scale, Rust, Water, Water Vapors
(M)NPT Outlet (In.)
1/2
Total Capacity - Air Treatment
12,500 cu ft
(F)NPT Inlet (In.)
1/2
Max. SCFM @ 100 PSI
30
Bowl
Metal
Item - Multi Stage Air Dryers
5 Stage Desiccant Dryer
Microns
5, .01, 40, 3
Max. Incoming Pressure - Air Treatment
250 psi
Filter Rating - Air Treatment
0.01 micron, 3 micron, 5 micron, 40 micron
Adjustment Range - Air Treatment
5 to 125 psi
CFM
30
Includes
Desiccant Beads, Shut Off Valve
Standards
ISO
Pressure Drop
10 psi
Drain Included
Yes
Filter Included
Yes
Air Outlet Type
NPT
Maximum Operating Temperature
120 Degrees F
Air Inlet Type
NPT
Maximum Flow Rate
30 cfm
Stage 1 Filter Type
40 micron Water Removing Filter
Stage 3 Filter Type
1 gallon Desiccant Filter
Filter Element Compatibility
BKF46W, DK35, EK35-3, SC35, SK35, VKB75
Total Air Capacity
12,500 cu ft
Stage 2 Filter Type
0.01 micron Oil Removing Filter
Filter Rating
0.01 micron, 3 micron, 5 micron, 40 micron
Stage 4 Filter Type
3 micron Filter
Filter Element Material
Sintered Bronze
Drain Type
Overnight
Maximum Operating Pressure
250 psi
Number of Stages
5
Number of Air Outlets
1
Bowl Capacity
9 oz, 128 oz
Body Material
Metal
Bowl Material
Metal
Filtered Substance
Debris, Dirt, Dust, Oil, Water, Water Vapor
Number of Air Inlets
1

Description

Desiccant Air Dryer, ISO Class 2, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 30 cfm, Overall Length 15 1/2 in, Overall Width 18 1/4 in, Maximum Operating Pressure 250 psi, Dew Point -40 Degrees F, Filter Rating 0.01 micron, 3 micron, 5 micron, 40 micron, Filter Included Yes, Number of Stages 5, Air Outlet Size 1/2 in, Air Outlet Type NPT, Application Dry Air, Body Material Metal, Bowl Capacity 9 oz, 128 oz, Bowl Material Metal, Desiccant Material Silica Gel, Drain Included Yes
