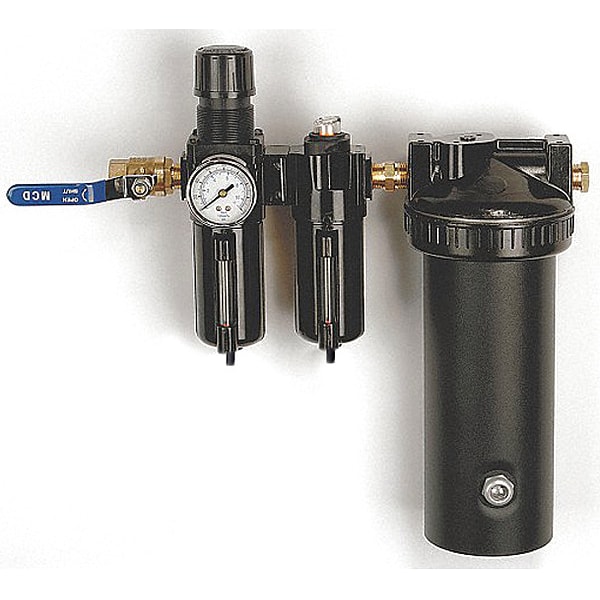

Desiccant Dryer, 4 Stage, 25 CFM

  • Mfr # 2YNL7

  • Zoro # G2856147

product price:
$
519.99
/ea
Free Shipping & Returns

Key Features

ISO Class
2
Inlet/Outlet NPTF (In.)
1/2
Type
Dry Air
Max. Operating PSI
250
Overall Height
16 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2YNL7
Zoro #
G2856147
UPC #
190735611319
Country of Origin
United States
Item
Desiccant Air Dryer
ISO Class
2
Inlet/Outlet NPTF (In.)
1/2
Type
Dry Air
Max. Operating PSI
250
Dew Point
-40 Degrees F
Application
Dry Air
Bowl Material - Air Treatment
Metal
Desiccant Material
Silica Gel
Max. Operating Temp. (F)
120 Degrees F
Total Capacity (Cu.-Ft.)
5000
Total Capacity - Air Treatment
5,000 cu ft
(M)NPT Outlet (In.)
1/2
Max. SCFM @ 100 PSI
25
Microns
5, .01, 40
Adjustment Range - Air Treatment
5 to 125 psi
Max. Incoming Pressure - Air Treatment
250 psi
Dew Point - Air Treatment
-30 Degrees F
Bowl
Metal
For Removal Of
Debris, Dirt, Oil, Oil Vapors, Pipe Scale, Rust, Water, Water Vapors
Item - Multi Stage Air Dryers
4 Stage Desiccant Dryer
CFM
25
(F)NPT Inlet (In.)
1/2
Filter Rating - Air Treatment
0.01 micron, 5 micron, 40 micron
Max. Flow - Air Treatment
25 cfm
Element Material
Sintered Bronze/paper pleaded
Dew Point (Deg. F)
-30
Standards
ISO
Includes
Desiccant Beads, Shut Off Valve
Air Inlet Type
NPT
Stage 2 Filter Type
5 Micron Element / Regulator - Integral Filter/Regulator
Drain Type
Overnight
Filter Element Material
Sintered Bronze
Maximum Flow Rate
25 cfm
Filter Rating
0.01 micron, 5 micron, 40 micron
Stage 4 Filter Type
1 Gallon Desiccant Dryer
Total Air Capacity
5,000 cu ft
Number of Stages
4
Filter Included
Yes
Filtered Substance
Debris, Dirt, Dust, Oil, Water, Water Vapor
Maximum Operating Temperature
120 Degrees F
Number of Air Outlets
1
Air Outlet Type
NPT
Stage 1 Filter Type
5 Micron Element / Regulator - Integral Filter/Regulator
Drain Included
Yes
Bowl Capacity
9 oz, 128 oz
Number of Air Inlets
1
Body Material
Metal
Stage 3 Filter Type
.01 Micron Oil Removing Filter
Maximum Operating Pressure
250 psi
Bowl Material
Metal

Description

Desiccant Air Dryer, ISO Class 2, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 25 cfm, Overall Length 15 1/2 in, Overall Width 18 1/4 in, Maximum Operating Pressure 250 psi, Dew Point -40 Degrees F, Filter Rating 0.01 micron, 5 micron, 40 micron, Filter Included Yes, Number of Stages 4, Air Outlet Size 1/2 in, Air Outlet Type NPT, Application Dry Air, Body Material Metal, Bowl Capacity 9 oz, 128 oz, Bowl Material Metal, Desiccant Material Silica Gel, Drain Included Yes
