  11. Desiccant Dryer, 5 cfm, 290 psi, 5" dia.

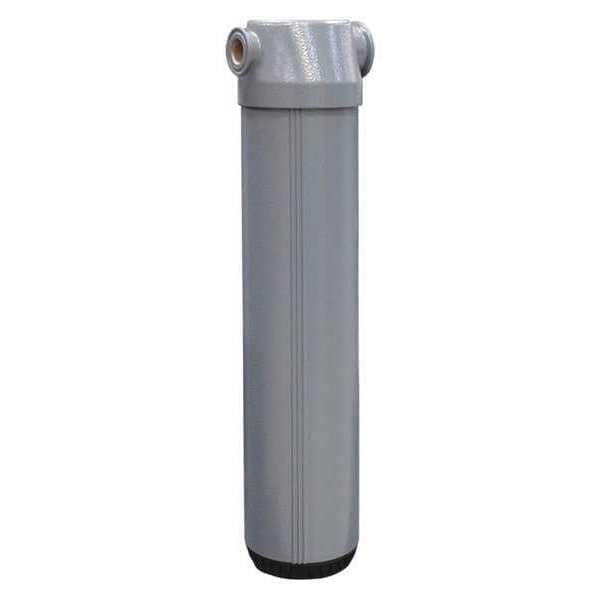

Speedaire Desiccant Dryer, 5 cfm, 290 psi, 5" dia. CDD-005 - main

Desiccant Dryer, 5 cfm, 290 psi, 5" dia.

  • Mfr # CDD-005

  • Zoro # G9870799

product price: $256.99
/ea
Free Shipping & Returns

Key Features

ISO Class
2
Inlet/Outlet NPTF (In.)
1/4
Type
Dry Air
Max. Operating PSI
290
Overall Height
12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CDD-005
Zoro #
G9870799
UPC #
00194484303488
Country of Origin
Turkey

Dimensions

Overall Height
12 in
Overall Width
4 13/16 in
Overall Depth
4 1/4 in
Dia. (In.)
5 in
Height (In.)
12 in
Bowl Size (Lb.)
2.5
Connection Size - Air Treatment
1/4 in NPT
Width (In.)
5 in
Length (In.)
5 in
Outside Diameter
4 1/4 in
Air Inlet Size
1/4 in
Air Outlet Size
1/4 in
Overall Length
11 13/16 in

Details

Item
Desiccant Air Dryer
ISO Class
2
Inlet/Outlet NPTF (In.)
1/4
Type
Dry Air
Max. Operating PSI
290
Dew Point
-40 Degrees F
Application
Compressed Air Dryer
Desiccant Material
Molecular Sieve
Max. Operating Temp. (F)
176 Degrees F
Total Capacity (Cu.-Ft.)
2500
CFM
5
Dew Point (Deg. F)
-40
Bowl
Aluminum
Max. Flow - Air Treatment
5 cfm
Max. Incoming Pressure - Air Treatment
290 psi
Dew Point - Air Treatment
-40 Degrees F
Max. SCFM @ 100 PSI
5
(M)NPT Outlet (In.)
1/4
Item - Desiccant Dryers
Desiccant Air Dryer
(F)NPT Inlet (In.)
1/4
ISO Class - Air Treatment
2
Microns
15 micron
Total Capacity - Air Treatment
2,500 cu ft
Filter Type
Particulate
Bowl Material
Aluminum
Maximum Operating Pressure
290 psi
Filter Included
No
Maximum Flow @ 100 psi
5
Maximum Flow Rate
5 cfm
Air Inlet Type
NPT
Maximum Operating Temperature
122 Degrees F
Number of Air Inlets
1
Minimum Operating Temperature
35 Degrees F
Body Material
Aluminum
Total Air Capacity
2,500 cu ft
Bowl Capacity
2.5 lb
Filter Rating
15 micron
Standards
ISO
Air Outlet Type
NPT
Number of Air Outlets
1

Description

Desiccant Air Dryer, ISO Class 2, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 5 cfm, Overall Length 11 13/16 in, Overall Width 4 13/16 in, Maximum Flow @ 100 psi 5, Maximum Operating Pressure 290 psi, Minimum Operating Temperature 35 Degrees F, Dew Point -40 Degrees F, Filter Rating 15 micron, Filter Included No, Air Outlet Size 1/4 in, Air Outlet Type NPT, Application Compressed Air Dryer, Body Material Aluminum, Bowl Capacity 2.5 lb, Bowl Material Aluminum

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
