  11. Elec. Air Compressor, 2 Stage, 15HP, 50CFM

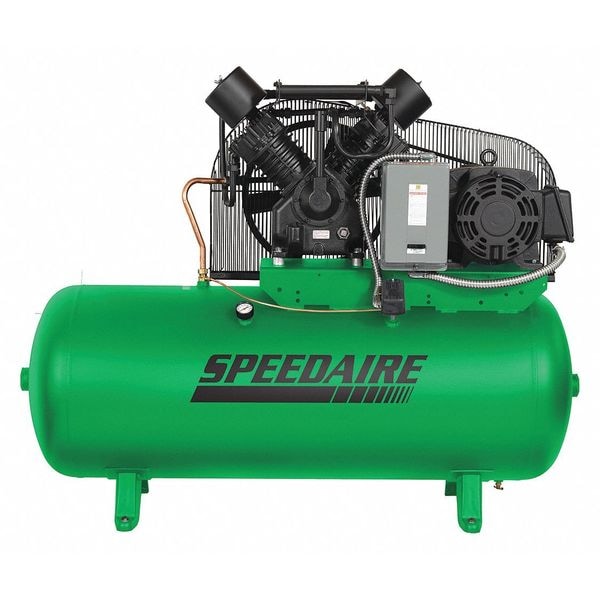

Speedaire Elec. Air Compressor, 2 Stage, 15HP, 50CFM 35WC54 - main

Elec. Air Compressor, 2 Stage, 15HP, 50CFM

  • Mfr # 35WC54

  • Zoro # G9146751

product price: $6,808.99
/ea
Item requires special delivery charges. A $265.00 per item surcharge will be applied.

Key Features

Tank Size
120 gal.
Phase
3
HP
15 HP
Voltage
208 to 230/460V
Tank Type
Horizontal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
35WC54
Zoro #
G9146751
UPC #
190735618295
Country of Origin
United States

Dimensions

Tank Size
120 gal.
Overall Height
54"
Overall Length
69 in
Overall Width
25 in
Tank Size - Air Compressor
120 gal
Air Tank Size
120 gal
Outlet Size
3/4 in
Inlet Size
3/4 in

Details

Phase
3
HP
15 HP
Voltage
208 to 230/460V
Tank Type
Horizontal
Max. Pressure
175 psi
Includes
Manual Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve, Tri-voltage Motor
Compressor Type
Tank Mounted
Free Air CFM @ Max. Pressure
50 cfm
Lubrication Type
Splash Lubricated
Motor Type
Open Dripproof
Compressor Package Type
Base Model
Standards
ASME Approved, CSA
Input Voltage - Air Compressor
208 to 230V AC, 460V AC
Finish
Powder Coated
ASME Tank
Yes
Hz
60
Cylinder Material
Cast Iron
Number of Stages
2
Lubrication Type - Air compressor
Splash Lubricated
HP - Air Compressor
15.0 hp
dBA @ 3 Feet
89
Number of Stages - Air Compressor
2
Phase - Electrical
3
Amps
41.1A to 37.2/18.6A
Item - Air Compressor
Stationary Air Compressor
(F)NPT Outlet
3/4 in
Max. Pressure - Air Compressor
175 psi
Off Pressure Switch Setting
175 psi
Style - Air Compressor
Simplex
Pump Oil Capacity
4 qt
Pump RPM
1,020
Pump Location - Air Compressor
Tank Mounted
Tank Style - Air Compressor
Horizontal
Free Air CFM @ Max. Pressure - Air Compressor
50.0
On Pressure Switch Setting
135 psi
Item
Electric Air Compressor
Enclosure
Open Drip Proof
Control
Pressure Switch
Pump Type
Reciprocating
Duty Cycle
Continuous
Output Power
15 hp
Free Air Flow Rate @ Maximum Pressure
50 cfm
Life Expectancy
15,000 hr
Outlet Gender
Female
Maximum Operating Pressure
175 psi
Maximum Speed
1,020 RPM
Control Type
Pressure Switch
Air Tank Style
Horizontal
Enclosure Type
Open Dripproof
Input Voltage
208-230V AC, 460V AC
Sound Level
89 dBA
Pump Style
Simplex
Outlet Type
NPT
Current Rating
18.7 A, 41.1 to 37.2 A
Frequency
60 Hz
Pump Location
Top Mount

Description

Electric Air Compressor, Lubrication Type Splash Lubricated, Air Tank Style Horizontal, Number of Stages 2, Output Power 15 hp, Free Air Flow Rate @ Maximum Pressure 50 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 120 gal, Input Voltage 208-230V AC, 460V AC, Phase Three, Frequency 60 Hz, Compressor Package Type Base Model, Pump Style Simplex, Pump Type Reciprocating, Pump Location Top Mount
