  11. Elec. Air Compressor, 2 Stage, 7.5HP, 24CFM, Standards: ASME, CSA
Shop All Stationary Electric Air Compressors
Speedaire

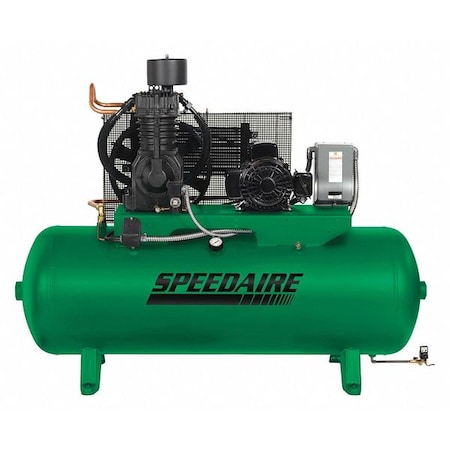

Elec. Air Compressor, 2 Stage, 7.5HP, 24CFM, Standards: ASME, CSA

Hover or click to zoom Tap to zoom
Key Features
  • Tank Size: 80 gal.
  • Phase: 3
  • HP: 7.5 HP
  • Voltage: 208 to 230/460V
  • Tank Type: Horizontal
  • Max. Pressure: 175 psi
  • Includes: Air Cooled Aftercooler, Electronic Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve, Tri-voltage Motor
  • Compressor Type: Tank Mounted
See full product details
$4,679.23
Item requires special delivery charges. A $250.00 per item surcharge will be applied.
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Speedaire #35WC52 Specifications

  • Tank Size: 80 gal.
  • Phase: 3
  • HP: 7.5 HP
  • Voltage: 208 to 230/460V
  • Tank Type: Horizontal
  • Max. Pressure: 175 psi
  • Includes: Air Cooled Aftercooler, Electronic Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve, Tri-voltage Motor
  • Compressor Type: Tank Mounted
  • Overall Height: 46"
  • Overall Length: 63 in
  • Free Air CFM @ Max. Pressure: 24.3 cfm
  • Lubrication Type: Splash Lubricated
  • Motor Type: Open Dripproof
  • Compressor Package Type: Fully Packaged
  • Standards: ASME, CSA
  • ASME Tank: Yes
  • Enclosure: Open Drip Proof
  • Number of Stages - Air Compressor: 2
  • Finish: Powder Coated
  • Pump Oil Capacity: 2 qt
  • Amps: 19.8A to 17.9/9A
  • (F)NPT Outlet: 3/4 in
  • Tank Size - Air Compressor: 80 gal
  • dBA @ 3 Feet: 85
  • Cylinder Material: Cast Iron
  • Number of Stages: 2
  • Hz: 60
  • Phase - Electrical: 3
  • HP - Air Compressor: 7.5 hp
  • Item: Electric Air Compressor
  • Tank Style - Air Compressor: Horizontal
  • Input Voltage - Air Compressor: 208 to 230V AC, 460V AC
  • Pump RPM: 1,020
  • Max. Pressure - Air Compressor: 175 psi
  • Item - Air Compressor: Stationary Air Compressor
  • Style - Air Compressor: Simplex
  • Pump Location - Air Compressor: Tank Mounted
  • Control: Pressure Switch
  • Lubrication Type - Air compressor: Splash Lubricated
  • Off Pressure Switch Setting: 175
  • On Pressure Switch Setting: 135
  • Overall Width: 21 in
  • Free Air CFM @ Max. Pressure - Air Compressor: 24.3
  • Duty Cycle: Continuous
  • Sound Level: 87 dBA
  • Sound Level Range: Standard (70 dBA or more)
  • Compressor Voltage: 208-230V AC
  • Life Expectancy: 15,000 hr
  • Frequency: 60 Hz
  • Pump Location: Top Mount
  • Tank Style (Broad): Horizontal
  • Free Air Flow Rate @ Maximum Pressure: 24.5 cfm
  • Outlet Gender: Female
  • Outlet Size: 3/4 in
  • Maximum Operating Pressure: 175 psi
  • Air Tank Size: 80 gal
  • Outlet Type: NPT
  • Input Voltage: 208-230V AC, 460V AC
  • Free Air Flow Rate @ Max Pressure: 24.5 cfm
  • Control Type: Pressure Switch
  • Enclosure Type: Open Dripproof
  • Max Operating Pressure: 175 psi
  • Output Power: 7.5 hp
  • Air Tank Style: Horizontal
  • Inlet Size: 3/4 in
  • Pump Style: Simplex
  • Current Rating: 19.8 to 17.8 A, 9.9 A
  • Maximum Speed: 1,020 RPM
  • Country of Origin (subject to change): United States

Description

Electric Air Compressor, Lubrication Type Splash Lubricated, Air Tank Style Horizontal, Number of Stages 2, Output Power 7.5 hp, Free Air Flow Rate @ Maximum Pressure 24.5 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 80 gal, Input Voltage 208-230V AC, 460V AC, Phase Three, Frequency 60 Hz, Compressor Package Type Fully Packaged, Pump Style Simplex, Pump Type Reciprocating, Pump Location Top Mount
