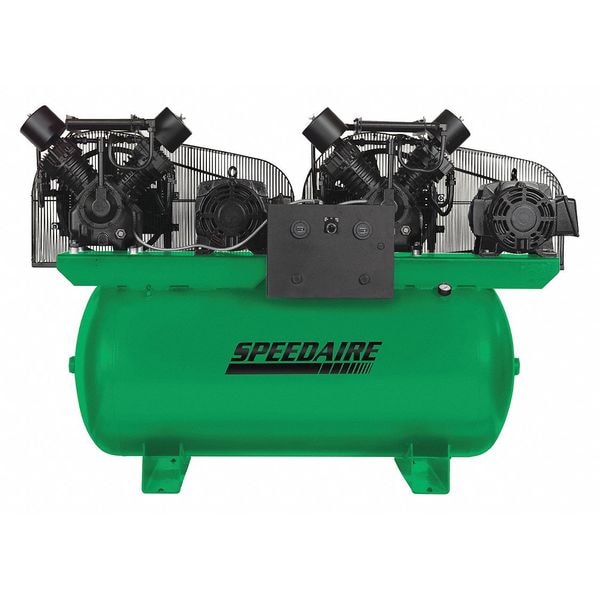

Elec. Air Compressor, Duplex, 15HP, 100CFM

Mfr # 35WC65
Zoro # G9470876

17,295.99

Additional $290.00 delivery surcharge applies per item.

Key Features

Tank Size

200 gal.

Phase

15 HP

Voltage

208 to 230/460V

Tank Type

Horizontal

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 35WC65
Zoro #: G9470876
UPC #: 190735618400
Country of Origin: United States

Dimensions

Tank Size: 200 gal.
Overall Height: 60 in
Overall Length: 91 in
Overall Width: 32 in
Tank Size - Air Compressor: 200 gal
Outlet Size: 3/4 in
Inlet Size: 3/4 in
Air Tank Size: 200 gal
Wire Rope Length: 91 in
Length: 91 in

Details

Phase: 3
HP: 15 HP
Voltage: 208 to 230/460V
Tank Type: Horizontal
Max. Pressure: 175 psi
Includes: Manual Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve, Tri-voltage Motor
Compressor Type: Tank Mounted Duplex
Free Air CFM @ Max. Pressure: 100 cfm
Lubrication Type: Splash Lubricated
Motor Type: Open Dripproof
Compressor Package Type: Base Model
Standards: ASME Approved, CSA
HP - Air Compressor: 15.0 hp
Finish: Powder Coated
Control: Pressure Switch
Number of Stages - Air Compressor: 2
Style - Air Compressor: Duplex
Item - Air Compressor: Stationary Air Compressor
Lubrication Type - Air compressor: Splash Lubricated
Max. Pressure - Air Compressor: 175 psi
Number of Stages: 2
Amps: 82.2A to 74.4/37.2A
Item: Electric Air Compressor
Free Air CFM @ Max. Pressure - Air Compressor: 100
Hz: 60
Cylinder Material: Cast Iron
Tank Style - Air Compressor: Horizontal
(F)NPT Outlet: 3/4 in
Pump RPM: 1,020
Phase - Electrical: 3
Pump Oil Capacity: 4 qt
Enclosure: Open Drip Proof
On Pressure Switch Setting: 135 psi
ASME Tank: Yes
Input Voltage - Air Compressor: 208 to 230V AC, 460V AC
Off Pressure Switch Setting: 175 psi
Pump Location - Air Compressor: Tank Mounted
dBA @ 3 Feet: 89
Duty Cycle: Continuous
Pump Type: Reciprocating
Enclosure Type: Open Dripproof
Air Tank Style: Horizontal
Pump Location: Top Mount
Maximum Speed: 1,020 RPM
Maximum Operating Pressure: 175 psi
Frequency: 60 Hz
Output Power: 15 hp
Input Voltage: 208-230V AC, 460V AC
Pump Style: Duplex
Outlet Type: NPT
Free Air Flow Rate @ Maximum Pressure: 100 cfm
Outlet Gender: Female
Current Rating: 37.2 A, 82.2 to 74.4 A
Control Type: Pressure Switch
Sound Level: 89 dBA

Description

Electric Air Compressor, Lubrication Type Splash Lubricated, Air Tank Style Horizontal, Number of Stages 2, Output Power 15 hp, Free Air Flow Rate @ Maximum Pressure 100 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 200 gal, Input Voltage 208-230V AC, 460V AC, Phase Three, Frequency 60 Hz, Compressor Package Type Base Model, Pump Style Duplex, Pump Type Reciprocating, Pump Location Top Mount
