Speedaire

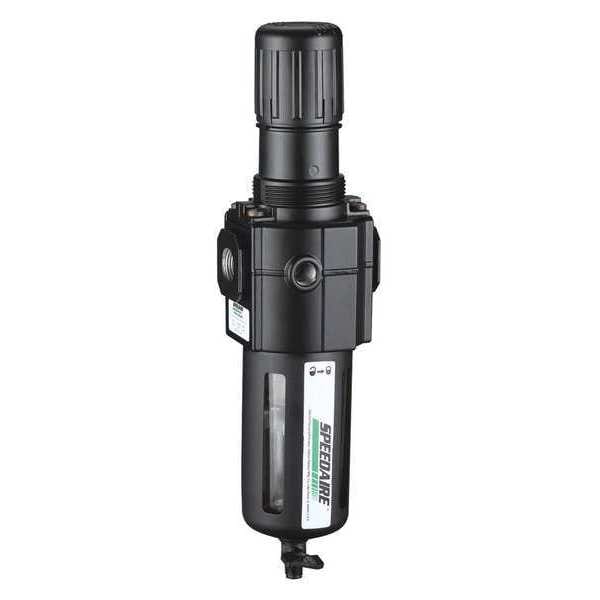

Filter/Regulator, 11.93 In. H, 3.15 In. W

product price: $68.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 1/2 in NPT
  • Filter Rating - Air Treatment 40 micron
  • Max. Incoming Pressure - Air Treatment 150 psi
  • Max. Flow - Air Treatment 212 cfm
  • Adjustment Range - Air Treatment 5 to 150 psi
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 1/2 in NPT
Size - Air Treatment Standard
Bowl Size - Air Treatment 7.0 oz
Overall Height 11.93 in
Bowl Size 7.0 oz.
Size Standard
Pipe Size 1/2" NPT
Overall Width 3 1/8 in
Gauge Port Size 1/4 in PTF
Pressure Gauge Port Size 1/4 in
Air Inlet Size 1/2 in
Air Outlet Size 1/2 in

Details

Item - Filter-Regulators Filter-Regulator
Filter Rating - Air Treatment 40 micron
Max. Incoming Pressure - Air Treatment 150 psi
Max. Flow - Air Treatment 212 cfm
Adjustment Range - Air Treatment 5 to 150 psi
Bowl Material - Air Treatment Polycarbonate
For Removal Of Particles, Water
Item Filter-Regulator
Filter Rating 40 micron
Max. Pressure 150 psi
Bowl Material Polycarbonate
Max. Flow 212 cfm
Max. Temp. 125 Degrees F
Adjustment Range 5 to 150 psi
Adjustment Knob Non Rising
Drain Type Manual
Includes Bowl and Guard
Weight 1.15 kg
Number of Air Inlets 1
Filter Element Material PE
Maximum Regulated Pressure 150 psi
Air Inlet Gender Female
Seal Material Rubber
Regulator Type Relieving
Filter Bowl Guard Included Yes
Air Outlet Gender Female
Minimum Regulated Pressure 5 psi
For Fluid Type Compressed Air
Adjustment Mechanism Material Reinforced Nylon
Maximum Operating Pressure 150 psi
Differential Pressure Indicator Included No
Maximum Flow Rate 212 cfm
For Substance Type Air
Number of Air Outlets 1
Drain Part Compatibility 1AKG7A
Minimum Operating Temperature 5 Degrees C
Maximum Operating Temperature 125 Degrees F
Filter Bowl Material Plastic
Pressure Gauge Port Type PTF
Sight Gauge Included No
Filter Type Particulate
Body Material Aluminum
Adjustment Location Top
Filter Bowl Guard Material Iron
Drain Included Yes
Air Outlet Type NPT
Pressure Gauge Included No
Filter Bowl Capacity 7 oz
Adjustment Mechanism Knob
Duty Rating Intermediate Duty
Minimum Operating Pressure 0.85 MPa
Series Standard Duty
Filter Efficiency 97 %
Air Inlet Type NPT
Modular Connection No Modular Connection
Pressure Gauge Port Gender Female
Air Flow Direction Left to Right
Type Standard

Description

Filter-Regulator, Filter Bowl Material Polycarbonate with Guard, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 212 cfm, Filter Rating 40 micron, Filter Type Particulate, Maximum Operating Pressure 150 psi, Drain Type Manual, Pressure Gauge Included No, Body Material Aluminum, Overall Width 3 1/8 in, Series Standard Duty, Adjustment Location Top, Adjustment Mechanism Knob, Adjustment Mechanism Material Reinforced Nylon, Air Flow Direction Left to Right, Air Inlet Gender Female
