Shop All Filters & Regulators
Speedaire

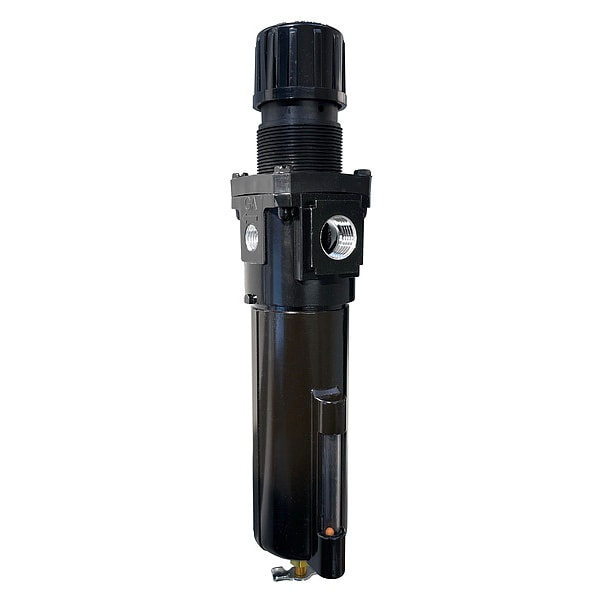

Filter/Regulator, 1/2 in FNPT Connection

product price: $152.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 1/2 FNPT
  • Max. Incoming Pressure - Air Treatment 250 psi
  • Max. Flow - Air Treatment 100 scfm
  • Adjustment Range - Air Treatment 5 to 125 psi
  • Bowl Material - Air Treatment Aluminum
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 1/2 FNPT
Bowl Size - Air Treatment 9 oz
Overall Height 3 in
Overall Width 2 1/4 in
Air Inlet Size 1/2 in
Overall Depth 2 1/4 in
Pressure Gauge Port Size 1/4 in
Air Outlet Size 1/2 in

Details

Max. Incoming Pressure - Air Treatment 250 psi
Max. Flow - Air Treatment 100 scfm
Adjustment Range - Air Treatment 5 to 125 psi
Bowl Material - Air Treatment Aluminum
Max. Temp. 160 Degrees F
Item Filter-Regulator
Drain Type Manual
Pressure Gauge Port Gender Female
Pressure Drop 3 psi
Filter Bowl Guard Included No
Filter Bowl Material Metal
Seal Material Buna-N
For Substance Type Air
Number of Air Outlets 1
Regulator Type Relieving
Air Inlet Gender Female
Minimum Operating Pressure 5 psi
Body Material Aluminum
Maximum Regulated Pressure 125 psi
Drain Included No
Maximum Operating Temperature 160 Degrees F
Weight 2 lb
Air Outlet Gender Female
Air Inlet Type NPT
Sight Gauge Included No
Number of Air Inlets 1
Maximum Flow @ 100 psi 100 scfm
Filter Type Particulate
Air Outlet Type NPT
Filter Bowl Capacity 9 fl oz
Minimum Flow Rate 5 scfm
Minimum Operating Temperature 40 Degrees F
Pressure Gauge Port Type NPT
Pressure Gauge Included No
Maximum Operating Pressure 250 psi
Minimum Regulated Pressure 5 psi
Duty Rating Light Duty
Maximum Flow Rate 100 cfm
For Use With 2YNL6
For Use With Mfr. Model Number C7612XXL-S55
Fits Brand Speedaire

Description

Filter-Regulator, Filter Bowl Material Aluminum, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 100 cfm, Filter Type Particulate, Maximum Operating Pressure 250 psi, Drain Type Manual, Pressure Gauge Included No, Body Material Aluminum, Overall Width 2 1/4 in, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/2 in, Air Outlet Type NPT, Drain Included No, Duty Rating Light Duty, Filter Bowl Capacity 9 fl oz, Filter Bowl Guard Included No
