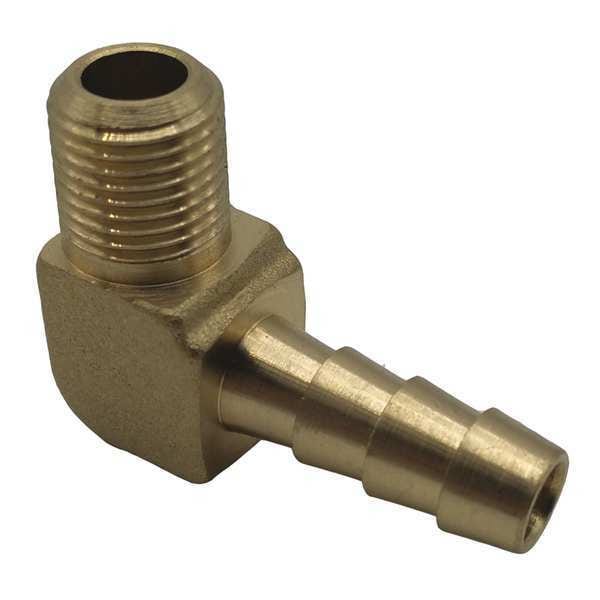

Hose Barb, 1/4 In Barb, 1/8 In MNPT, Brass, Material Grade: H59

The SPEEDAIRE - 6AFH0 is a Barbed Hose Fitting in the Push On Hose Fittings category. Made largely from Brass, this rigid fitting is specifically crafted for low pressure pneumatic and water applications. Conveniently designed with a 90-degree elbow shape, it aids in the efficient change of flow direction and the interconnection of hose lines. Featuring a 1/4 in barb size and a fitting size of 1/4 in x 1/8 in, it is suitable for hoses with an inner diameter of 1/4 in. It is rated for a maximum pressure of 300 psi. This fitting is reusable as per appropriate use and maintenance.

Key Features:

• Fitting Connection Type: Hose Barb x NPT. This detail helps specify the mechanism of attachment to the hose and pipe systems.
• Includes Shut Off: No. This shows that the product does not come with a built-in mechanism to halt fluid flow.
• Hose Fitting A and B: Both ends feature a Male connector. Note that Hose Fitting A Size is 1/4 in and Hose Fitting B Size is 1/8 in.
• Material Grade: H59. This is the specific grade of Brass used, which is indicative of its characteristics and properties.
• Clamp Type: The fitting is compatible with both Crimped and Hose Clamp types.
• Thread Size: The fitting comes with a 1/8 in NPT Thread Type. This provides necessary information about the threading for connectivity with matching threads.
• Vacuum Rating: Not Rated. This denotes that there isn't a specific performance rating under vacuum conditions provided.
