Speedaire

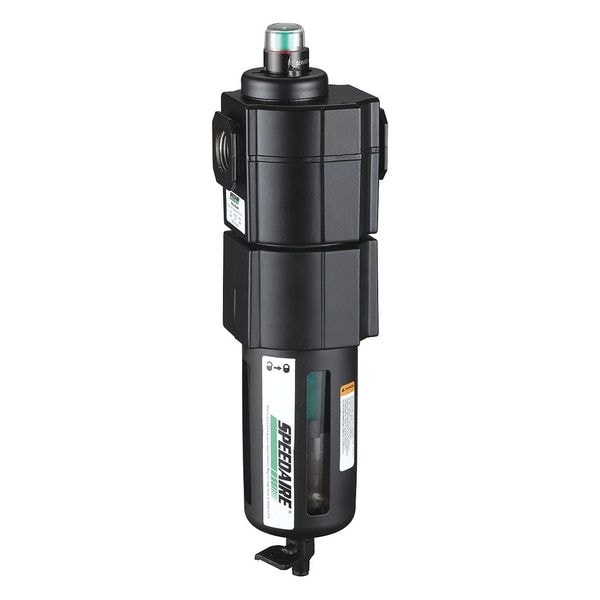

Pneumatic Oil Filter, 3/4 In. NPT, 60 cfm

original price: $137.58
5% off
new price: $129.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. Temp. 125 Degrees F
  • Overall Height 11 3/8 in
  • Connection Size - Air Treatment 3/4 in NPT
  • Drain Type Manual
  • Max. Flow - Air Treatment 60 cfm
See all product information

Product Information

Dimensions

Overall Height 11 3/8 in
Connection Size - Air Treatment 3/4 in NPT
Size Standard
Drain Port Size Will Fit 1/8-27 and 1/8-28 Pipe Thread
Overall Width 3 1/8 in
Bowl Size - Air Treatment 7.0 oz
Size - Air Treatment Standard
Air Inlet Size 3/4 in
Air Outlet Size 3/4 in

Details

Item Pneumatic Oil Filter
Max. Temp. 125 Degrees F
Drain Type Manual
Item - Air Filters Oil Removal Filter
Max. Flow - Air Treatment 60 cfm
Filter Rating - Air Treatment 0.01 micron
Bowl Material Polycarbonate with Guard
Max. Incoming Pressure - Air Treatment 150 psi
Bowl Material - Air Treatment Polycarbonate with Guard
Filter Rating 0.01 micron
For Removal Of Oil, Oil Odor, Oil Vapor, Particles, Water
Series Standard Duty
Type Modular
Includes Bowl Guard
Weight 1.1 kg
Air Outlet Type NPT
Duty Rating Intermediate Duty
Minimum Operating Temperature 5 Degrees C
Filter Type Coalescing
Maximum Operating Pressure 150 psi
Differential Pressure Indicator Included No
Maximum Operating Temperature 125 Degrees F
Number of Air Inlets 1
Air Inlet Type NPT
Filter Bowl Material Plastic
Seal Material Rubber
Air Outlet Gender Female
Maximum Flow Rate 60 cfm
For Fluid Type Compressed Air
Body Material Aluminum
For Substance Type Air
Air Flow Direction Left to Right
Air Inlet Gender Female
Filter Bowl Guard Included Yes
Modular Connection No Modular Connection
Filter Bowl Guard Material Iron
Filter Efficiency 99.3 %
Minimum Operating Pressure 1 MPa
Number of Air Outlets 1
Drain Included Yes
Sight Gauge Included No
System Location Main Line
Filter Bowl Capacity 7 oz
Gauge Included No

Description

Pneumatic Oil Filter, Filter Type Coalescing, Air Inlet Size 3/4 in, Air Inlet Type NPT, Maximum Flow Rate 60 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 125 Degrees F, Overall Width 3 1/8 in, Overall Height 11 3/8 in, Drain Included Yes, Filter Bowl Material Polycarbonate, Drain Type Manual, Series Standard Duty, Differential Pressure Indicator Included No, Air Flow Direction Left to Right, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 3/4 in
