  11. Refrigerated Air Dryer, Overall Width: 20 in

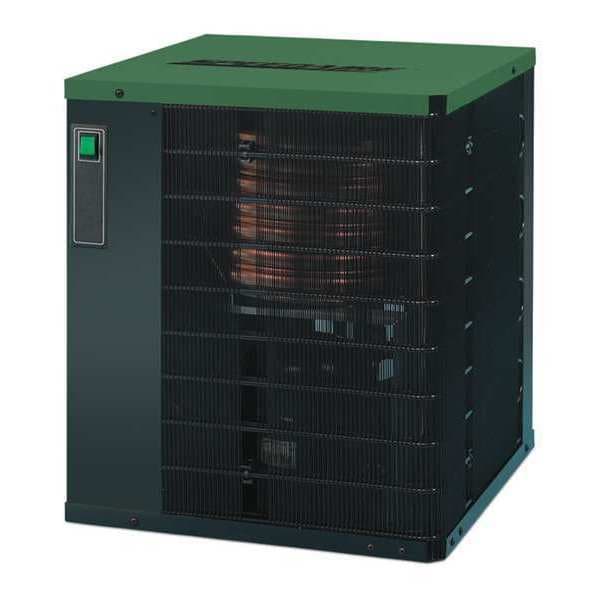

Speedaire Refrigerated Air Dryer, Overall Width: 20 in 3YA53 - main

Refrigerated Air Dryer, Overall Width: 20 in

  • Mfr # 3YA53

  • Zoro # G1165421

product price: $2,882.31
/ea
Free Shipping & Returns

Key Features

Includes
6 ft Power Cord, Pneumatic Drain
CFM
50
Phase
Single
Voltage
115V AC
Pipe Size
3/4" NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3YA53
Zoro #
G1165421
UPC #
190735623985
Country of Origin
Korea, Republic of

Dimensions

Pipe Size
3/4" NPT
Overall Height
22 in
Overall Width
20 in
Overall Depth
20 in
Connection Size - Air Treatment
3/4 in NPT
Air Outlet Size
3/4 in
Cord Length
6 ft
Air Inlet Size
3/4 in

Details

Item
Refrigerated Air Dryer
Includes
6 ft Power Cord, Pneumatic Drain
CFM
50
Phase
Single
Voltage
115V AC
Max. Pressure
250 psi
Refrigeration Compressor (HP)
1/3
ISO Class
6
Refrigerant
R-134A
Dew Point
50 Degrees F
Max. Ambient Temp.
113 Degrees F
Max. Air Compressor HP
15 hp
Heat Exchanger Material
Copper
Input Voltage - Air Treatment
115V AC
Max. Inlet Temp. - Air Treatment
120 Degrees F
Finish
Powder Coated
Item - Refrigerated Air Dryers
Refrigerated Compressed Air Dryer
ISO Class - Air Treatment
6
Bracket Kit
No
Refrigeration Compressor HP
1/3 hp
Max. Flow - Air Treatment
50 cfm
Full Load Amps
7.25 A
Features
On/Off Switch, Power On Light
Max. Inlet Temp.
120 Degrees F
Phase - Air Treatment
Single
Power
0.57 kW
Max. Incoming Pressure - Air Treatment
250 psi
Series
HPR
Air Inlet Type
NPT
Refrigeration Compressor Horsepower
0.333333333 hp
Maximum Operating Pressure
250 psi
Bracket Kit Included
No
Maximum Ambient Temperature
113 Degrees F
Frequency
60 Hz
Maximum Operating Temperature
120 Degrees F
Air Outlet Type
NPT
Full Load Current
7.25 A
Drain Included
Yes
Drain Type
Pneumatic Drain
Air Inlet Gender
Female
For Maximum Compressor Output Power
15 hp
Maximum Flow @ 100 psi
50 cfm
Cycling Type
Non-Cycling
Maximum Flow Rate
50 cfm
Electrical Connection Type
115V AC Plug

Description

Refrigerated Air Dryer, ISO Class 6, Maximum Flow Rate 50 cfm, Voltage 115V AC, Phase Single, Air Inlet Size 3/4 in, Air Inlet Type NPT, Air Inlet Gender Female, Maximum Operating Temperature 120 Degrees F, Power 0.57 kW, Dew Point 50 Degrees F, Series HPR, Air Outlet Size 3/4 in, Air Outlet Type NPT, Bracket Kit Included No, Cord Length 6 ft, Cycling Type Non-Cycling, Drain Included Yes, Drain Type Pneumatic Drain, Electrical Connection Type 115V AC Plug, Features On/Off Switch, Power On Light
