Speedaire

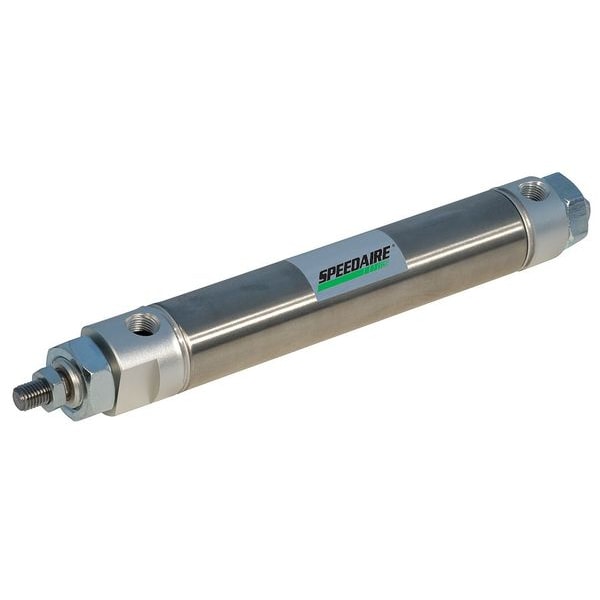

Round Body Cylinder, 1 1/16 in Bore, 3 in Stroke, Round Body Double Acting, Stainless Steel .
Mfr # NCDME106-0300
Zoro # G1794107
product price: $62.69
/eaKey Features
- Cylinder Action Double Acting
- Bore Dia. 1 1/16 in
- Max. Pressure 250 psi
- Body Material Stainless Steel
- Rod Dia. 0.31 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamProduct Information
- Brand Speedaire
- MFR # NCDME106-0300
- Zoro # G1794107
- UPC # 190735642405
- Country of Origin China
- Category Air Cylinders
Dimensions
| Bore Dia. | 1 1/16 in |
| Rod Dia. | 0.31 in |
| Overall Length | 7.62 in |
| Rod Thread Length | 1/2 in |
| Pivot Hole Dia. | 0.25 in |
| Port Size | 1/8 in NPT |
| Dimension A | 7 31/50 in |
| Dimension B | 1.12 in |
| Dimension C | 7.34 in |
| Rod Thread Size | 5/16"-24 |
| Air Cylinder Bore Dia. | 1 1/16 in |
| Bore Diameter | 1 1/16 in |
| Nose Mount Thread Size | 5/8"-18 |
| Stroke Length | 3 in |
| Body Diameter | 1 1/8 in |
| End Cap Length | 1/8 in |
| Inlet Size | 1/8 in |
| Rod Diameter | 5/16 in |
Description
Round Body Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Threaded Hole, Bore Diameter 1 1/16 in, Cushion Type None, Stroke Length 3 in, Inlet Size 1/8 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Mounting Location Front
Restrictions
- Hazardous material
