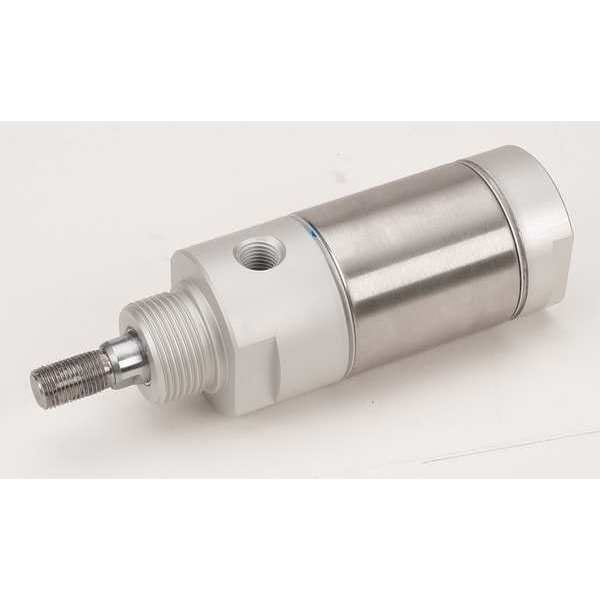

Round Body Cylinder, 2 in Bore, 3 in Stroke, Round Body Double Acting, Stainless Steel .
Mfr # NCDMB200-0300
Zoro # G1573232
product price:Â $70.69
/eaKey Features
Cylinder Action
Double Acting
Bore Dia.
2 in
Max. Pressure
250 psi
Body Material
Stainless Steel
Rod Dia.
0.62 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
NCDMB200-0300
Zoro #
G1573232
UPC #
190735640630
Country of Origin
United States
Dimensions
Bore Dia.
2 in
Rod Dia.
0.62 in
Overall Length
8.57 in
Rod Thread Length
7/8 in
Port Size
1/4 in NPT
Dimension C
0.91 in
Dimension A
8 57/100 in
Rod Thread Size
1/2"-20
Air Cylinder Bore Dia.
2 in
Dimension B
2.06 in
End Cap Length
5/16 in
Body Diameter
2 1/16 in
Inlet Size
1/4 in
Rod Diameter
5/8 in
Nose Mount Thread Size
1 1/4"-12
Stroke Length
3 in
Bore Diameter
2 in
Description
Round Body Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Nose, Bore Diameter 2 in, Cushion Type None, Stroke Length 3 in, Inlet Size 1/4 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Mounting Location Front
Restrictions
Hazardous material
