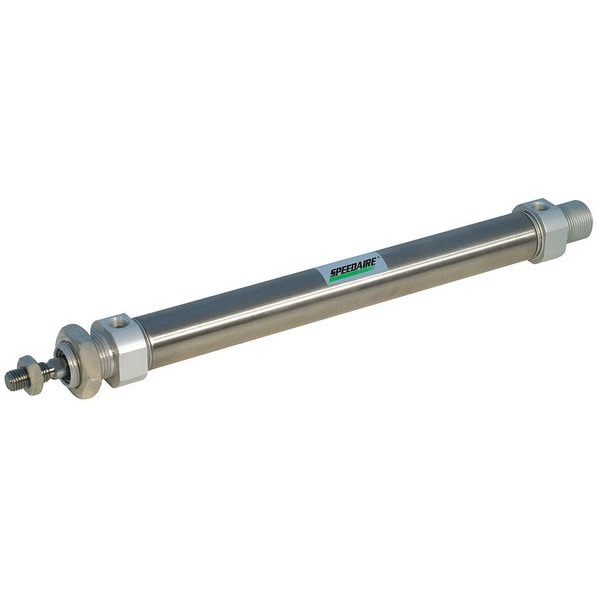

Round Body Cylinder, 25 mm Bore, 40 mm Stroke, ISO Double Acting, Stainless Steel .
Mfr # CD85E25-40-B
Zoro # G0232032
product price: $57.49
/eaKey Features
Cylinder Action
Double Acting
Bore Dia.
25 mm
Max. Pressure
145 psi
Body Material
Stainless Steel
Rod Dia.
10 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CD85E25-40-B
Zoro #
G0232032
UPC #
190735646809
Country of Origin
Japan
Dimensions
Bore Dia.
25 mm
Rod Dia.
10 mm
Overall Length
177 mm
Rod Thread Length
22 mm
Port Size
1/8 in G
Dimension E
1/8 in G
Dimension A
115mm + stroke
Dimension B
22mm
Dimension D
M22 x 1.5 in
Rod Thread Size
M10 x 1.25
Air Cylinder Bore Dia.
25 mm
Dimension C
M10 x 1.25 in
Inlet Size
1/8 in
Nose Mount Thread Size
M22 x 1.5
Stroke Length
40 mm
Rod Diameter
10 mm
End Cap Length
15 mm
Bore Diameter
25 mm
Body Diameter
22 mm
Description
Round Body Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Repairable, Magnetic Piston Magnetic Piston, Mounting Type Threaded Hole, Bore Diameter 25 mm, Cushion Type Rubber Cushion, Stroke Length 40 mm, Inlet Size 1/8 in, Air Inlet Type G, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Mounting Location Front
Restrictions
Hazardous material
