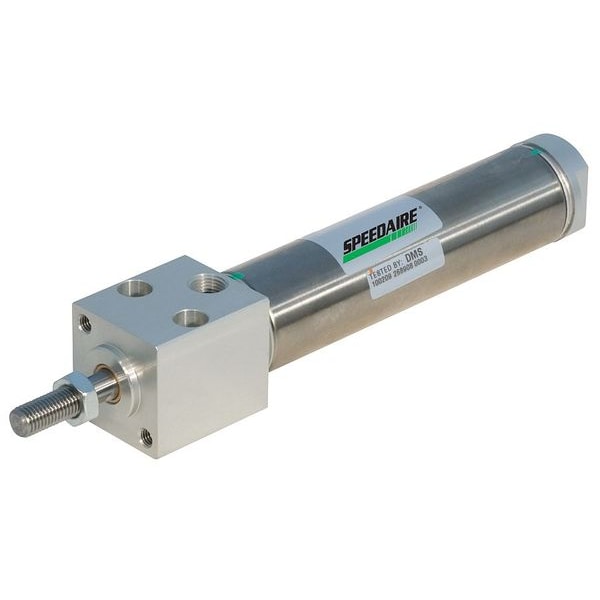

Round Body Cylinder, 3/4 in Bore, 2 in Stroke, Round Body Double Acting, Stainless Steel .
Mfr # NCDMR075-0200
Zoro # G0574043
product price:Â $62.39
/eaKey Features
Cylinder Action
Double Acting
Bore Dia.
3/4 in
Max. Pressure
250 psi
Body Material
Stainless Steel
Rod Dia.
0.25 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
NCDMR075-0200
Zoro #
G0574043
UPC #
190735642870
Country of Origin
United States
Dimensions
Bore Dia.
3/4 in
Rod Dia.
0.25 in
Overall Length
5.97 in
Rod Thread Length
3/4 in
Port Size
1/8 in NPT
Dimension B
1.09 in
Rod Thread Size
1/4"-28
Dimension C
1 in
Dimension D
1/4"-20 UNC, 10-32 SHCS
Dimension A
5 97/100 in
Air Cylinder Bore Dia.
3/4 in
Dimension E
1/8 in NPT
Inlet Size
1/8 in
End Cap Length
1/8 in
Overall Height
1 in
Body Diameter
13/16 in
Bore Diameter
3/4 in
Overall Width
1 in
Stroke Length
2 in
Rod Diameter
1/4 in
Description
Round Body Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Block, Bore Diameter 3/4 in, Cushion Type None, Stroke Length 2 in, Inlet Size 1/8 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Body Material Finish Anodized, Mounting Location Front, Tie Rod Material Not Applicable
Restrictions
Hazardous material
