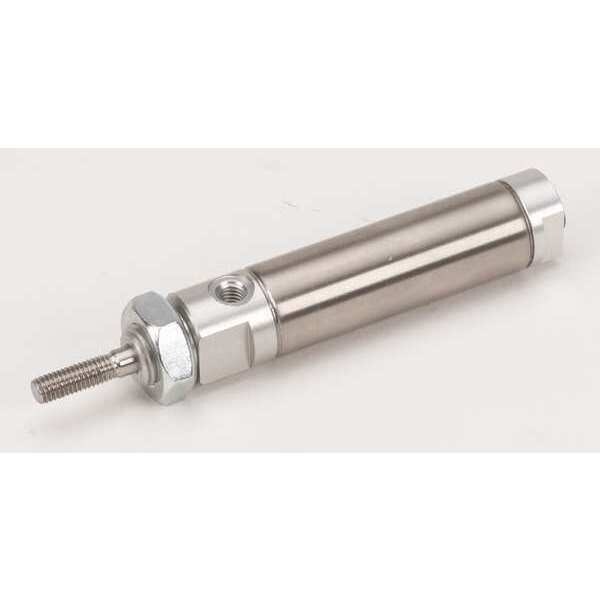

Round Body Cylinder, 9/16 in Bore, 4 in Stroke, Round Body Double Acting, Stainless Steel .
Mfr # NCDMB056-0400
Zoro # G2037086
product price:Â $41.49
/eaKey Features
Cylinder Action
Double Acting
Max. Pressure
250 psi
Body Material
Stainless Steel
Rod Dia.
0.197 in
Rod Thread Length
1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
NCDMB056-0400
Zoro #
G2037086
UPC #
190735639924
Country of Origin
United States
Dimensions
Bore Dia.
9/16 in
Rod Dia.
0.197 in
Overall Length
6.69 in
Rod Thread Length
1/2 in
Port Size
#10-32 UNF
Dimension D
7/16"-20 UNF
Rod Thread Size
#10-32
Dimension B
0.654 in
Dimension A
6 69/100 in
Air Cylinder Bore Dia.
9/16 in
Dimension E
10-32 UNF
Dimension C
1/2 in
Inlet Size
#10-32
Stroke Length
4 in
End Cap Length
3/16 in
Overall Height
1/2 in
Nose Mount Thread Size
7/16"-20
Rod Diameter
3/16 in
Overall Width
1/2 in
Body Diameter
5/8 in
Bore Diameter
9/16 in
Description
Round Body Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Nose, Bore Diameter 9/16 in, Cushion Type None, Stroke Length 4 in, Inlet Size #10-32, Air Inlet Type UN, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Body Material Finish Anodized, Mounting Location Front, Tie Rod Material Not Applicable
Restrictions
Hazardous material
