Hankison

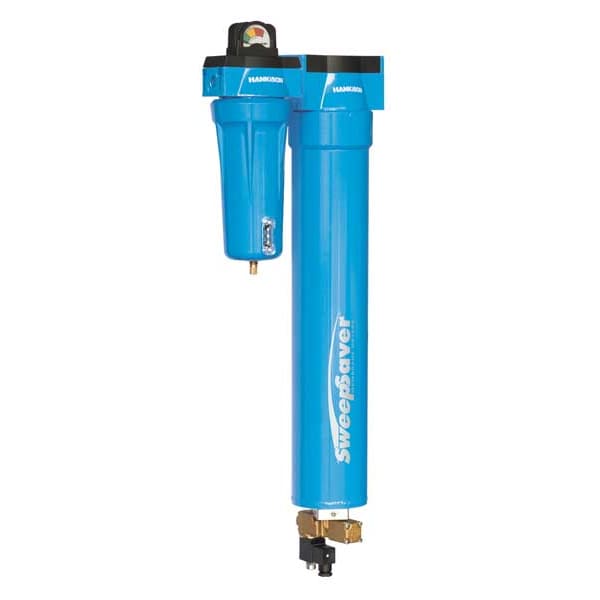

Air Dryer, Membrane, 1.28 CFM, 12 Watts

product price: $2,062.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • ISO Class 2, 3, 4, 5, 6
  • CFM 1.28 to 4.55
  • Dew Point (Deg. F) -40 to 50
  • Voltage 24/120/240V AC
  • Phase 1
See all product information

Product Information

Dimensions

Width (In.) 8 in
Height (In.) 20 in
Overall Width 105 mm
Overall Height 20 1/32 in
Overall Depth 4 1/8 in
Air Inlet Size 3/8 in
Air Outlet Size 3/8 in

Details

ISO Class 2, 3, 4, 5, 6
CFM 1.28 to 4.55
Dew Point (Deg. F) -40 to 50
Voltage 24/120/240V AC
Phase 1
Max. Ambient Temp. (F) 150 Degrees F
Max. Pressure (PSI) 200 psi
Watts 12 W
Features Digital Purge Control
Filter Grade 5 Coalescing
Type Membrane
Series SweepSaver
Includes Auto Drain, Oil Removal Prefilter
Item Membrane Air Dryer
Max. Inlet Temp. (Deg. F) 150 Degrees F
Inlet/Outlet (In.) 3/8 in
Finish Powder Coated
Standards ISO 8573-1 Class 1.2.1
Dew Point 40 Degrees F
Number of Air Outlets 1
Air Outlet Type NPT
Minimum Flow Rate 1.28 cfm
Filter Element Life 6 mo
Body Material Aluminum
Filter Type Coalescing
Maximum Ambient Temperature 150 Degrees F
Filtered Substance Air, Water Vapor
Filter Included Grade 5 Coalescing
Maximum Operating Pressure 200 psi
Air Inlet Type NPT
Number of Air Inlets 1
Housing Material Aluminum
Maximum Operating Temperature 150 Degrees F
Drain Type Automatic
Maximum Flow Rate 4.6 cfm

Description

Membrane Air Dryer, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 4.6 cfm, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 150 Degrees F, Maximum Ambient Temperature 150 Degrees F, Drain Type Automatic, ISO Class 2, 3, 4, 5, 6, Dew Point 40 Degrees F, Overall Width 105 mm, Overall Height 20 1/32 in, Series SweepSaver, Air Outlet Size 3/8 in, Air Outlet Type NPT, Body Material Aluminum, Features Digital Purge Control
