Speedaire

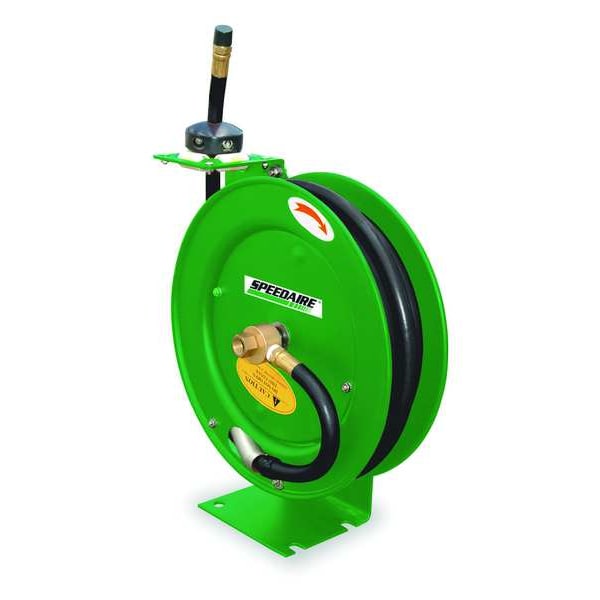

Spring Return Hose Reel, 3/8 in Hose Dia., 50 ft Length, 300 psi

Speedaire Spring Return Hose Reel, 3/8 in Hose Dia., 50 ft Length, 300 psi 2CUA7
Tap to zoom
Hover or click to zoom
$173.59
  • Duty Rating: Heavy Duty
  • Finish - Hose Reels: Powder Coated
  • Hose Included: Yes
See full product details
This item ships free.
Total: $173.59

Speedaire #2CUA7 Specifications

  • Duty Rating: Heavy Duty
  • Finish - Hose Reels: Powder Coated
  • Hose Included: Yes
  • Hose Inside Dia.: 3/8 in
  • Hose Length: 50 ft
  • Housing Material: Steel
  • Max. Pressure: 300 psi
  • Media - Hose Reels: Air, Water
  • Mounting: Bench and Truck, Ceiling, Floor, Wall
  • Overall Length: 17 3/4 in
  • Overall Width: 7 in
  • Max. Temp.: 210 Degrees F
  • Drive Type - Hose Reels: Spring Return
  • Seal Type: Nitrile
  • Reel Inlet: 1/2 in (F)NPT
  • Hose Outlet: 1/4 in (M)NPT
  • Swivel Material: Brass
  • Overall Height: 17 in
  • Latch: Locking
  • Enclosed Reel: No
  • Hose Ends: 1/4 in (M)NPT x 3/8 in (M)NPT
  • Bearings: Permanently Lubricated
  • Hose Material: Rubber
  • Includes: Hose
  • Item: Spring Return Hose Reel
  • Drive Type: Spring Return
  • Reel Width: 7 45/64 in
  • Hose Outside Dia.: 11/16 in
  • Weight: 29.5 lb
  • Includes Hose Stop: Yes
  • Mount Base Height: 6 in
  • Latch Type: Locking
  • Mount Base Width: 5 45/64 in
  • Speed Limited Retraction: No
  • Hose Fitting A Size: 3/8 in
  • Fitting Type: NPT x NPT
  • Reel Color: Green
  • Mounting Hole Center to Center Width: 4 in
  • Hose Tube Material: Rubber
  • Hose Fitting A Material: Brass
  • Hose End Configuration: 3/8 in MNPT x 1/4 in MNPT
  • Minimum Operating Temperature: -4 Degrees F
  • Swivel Outlet Thread Size: 3/8 in
  • Maximum Operating Pressure: 300 psi
  • Number of Mount Holes: 4
  • Swivel Inlet Thread Size: 1/2 in
  • Hose Fitting A Type: NPT
  • Reel Material: Steel
  • Hose Fitting A Gender: Male
  • Bearing Construction: Permanently Lubricated
  • Enclosed: No
  • Hose Fitting B Gender: Male
  • For Dual Hose: No
  • Hose Fitting B Size: 1/4 in
  • Swivel Inlet Type: NPT
  • Hose Cover Material: Rubber
  • Reel Diameter: 16 3/16 in
  • Number of Guide Arms: Single Arm
  • Base Motion Type: Stationary
  • Reel Finish: Powder Coated
  • Hose Reel Type: Wall Mount Hose Reel
  • Fitting Size: 3/8 in x 1/4 in
  • Overall Dimensions: 17 3/4 in L x 7 in W x 17 in H
  • Hose Reel Primary Application: Air, Water
  • Hose Fitting B Type: NPT
  • Swivel Outlet Type: NPT
  • Hose Capacity: 50 ft (3/8 in I.D.)
  • Swivel Outlet Gender: Female
  • Maximum Operating Temperature: 140 Degrees F
  • Corrosion-Resistant: Yes
  • Includes Leader Hose: No
  • Swivel Inlet Gender: Female
  • Mounting Hole Center to Center Height: 5 in
  • Hose Color: Black
  • Fasteners Included: No
  • Includes Hose: Yes
  • Spiral Hose Guard: No
  • Mount Hole Diameter: 1/2 in
  • Country of Origin (subject to change): China

Description

Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 50 ft (3/8 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/8 in, Hose Length 50 ft, Reel Material Steel, Mounting Location Ceiling, Floor, Wall, Speed Limited Retraction No, Overall Height 17 in, Overall Length 17 3/4 in, Overall Width 7 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Black, Hose Cover Material Rubber, Hose Fitting A Gender Male
