Shop SPEEDAIRE

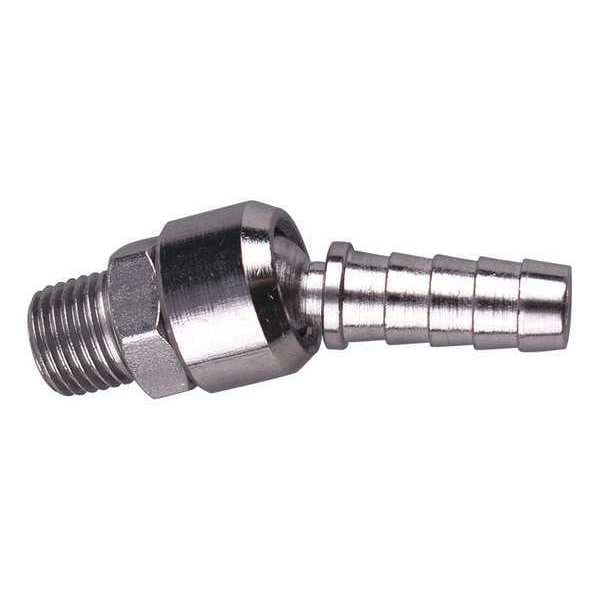

Swivel Connector, 1/4 (M)NPT x 3/8 Barb

  • Mfr # 30E603
  • Zoro # G4977761
product price:
$
5.69
/ea

Key Features

Material
Steel
Connection Type
(M)NPT x Hose Barb
Finish/Coating
Chrome-Plated
Barb Size
3/8 in
Seal Material
NBR
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
30E603
Zoro #
G4977761
UPC #
190735612446
Country of Origin
China

Dimensions

Barb Size
3/8 in
Thread Size
1/4 in
Overall Length
2.39 in
Outlet Connection Size
3/8 in
Inlet Connection Size
1/4 in
Wire Rope Length
2.39 in
Length
2.39 in

Details

Item
Swivel Connector
Material
Steel
Connection Type
(M)NPT x Hose Barb
Finish/Coating
Chrome-Plated
Seal Material
NBR
Temp. Range
-20 Degrees to 150 Degrees F
Inlet
1/4 in NPT
Outlet
1/4 in Quick Connect
Number of Pivot Points
1
Inlet Connection Type
Threaded
Inlet Connection Gender
Male
Minimum Operating Temperature
-20 Degrees F
Includes Pre-Applied Thread Sealant
No
Swivel Angle
360 Degrees
Outlet Connection Type
Hose Barb
Fitting Material Grade
Ml08
Swivel Type
Ball-Joint
Pivot Angle
25 Degrees
Maximum Operating Temperature
150 Degrees F
For Use On
Pneumatic Tools, Pneumatic Tubing Lines
Max. Working Pressure @ 70 F
150 psi
Fitting Material
Steel
Fitting Material Finish
Chrome-Plated
Maximum Operating Pressure
150 psi
Operating Pressure - Maximum
150 psi
Outlet Connection Gender
Genderless

Description

The SPEEDAIRE - 30E603 is a swivel connector designed as a quick-connect fitting that allows the hose or attached tool to rotate freely relative to the fixed coupling. Designed to provide a 360-degree swivel joint that reduces relative rotation between the hose/tool and the fixed coupling. Includes an NBR sealing element; rated for a maximum working pressure of 150 psi at 70°F. Compatible with pneumatic tools and pneumatic tubing lines that use an 1/4 in male NPT inlet and a 3/8 in hose barb outlet.

Key Features:

  • Connection type: (M)NPT x Hose Barb with 1/4 in NPT inlet and 3/8 in hose barb outlet size.
  • Material: Steel construction with chrome-plated finish for surface treatment.
  • Seal material: NBR (Nitrile) used for sealing elements.
  • Maximum working pressure: 150 psi at 70°F.
  • Operating temperature range: -20°F to 150°F.
  • Swivel angle of 360 degrees with one pivot point and a 25-degree pivot angle, utilizing a ball-joint swivel type.
  • Overall length of 2.39 in.
  • Does not include pre-applied thread sealant.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
