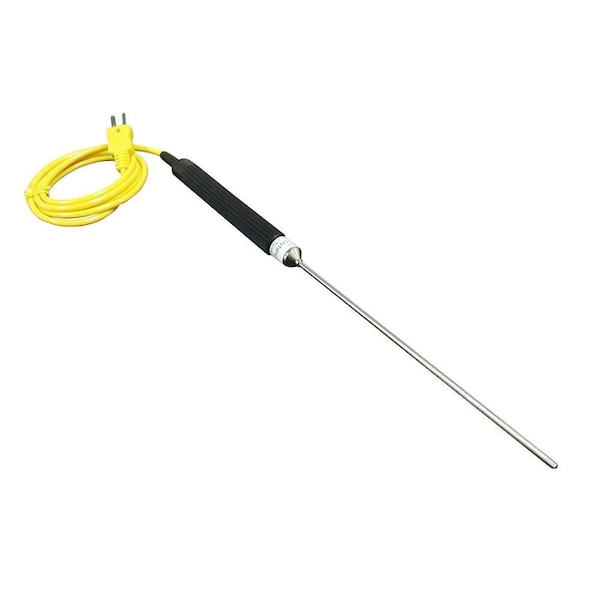

Type K Immersion Thermometer Probe, Large

The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general-purpose thermocouple with a sensitivity of approximately 41 μV/ degrees C. A wide variety of probes are available in its −50 degrees C to +900 degrees C / -58 degrees F to +1652 degrees F range. Type K wire color standard is yellow + and red -. Type J has a more restricted range of −50 to +400 degrees C, but higher sensitivity of about 50 μV/ degrees C. Type J wire color standard is white + and red -. Specifications Immersion & General Purpose Type Application Measurement Range Accuracy K Large -50 to 400 degrees C-58 to 752 degrees F ± 0.75% Dimensions Handle Length: 5.2 133 mmProbe Length: 6 152 mmProbe Diam: 3 mmCord Length: 40 Comparison Chart Comparison Chart
