- Standards
- EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1; IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; GB/T 14048.4
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Contactor Application
- Resistive load
- Minimum Switching Current
- 5 mA for signalling circuit
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Insulation Resistance
- Greater than 10 MOhm for signalling circuit
- Protective Treatment
- THIEC 60068-2-30
- Mechanical Durability
- 15 Mcycles
- Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat 6 mm; Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2; Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2; Power circuit 15.93 lbf.in (1.8 N.m) screw clamps terminals flat 6 mm; Power circuit 15.93 lbf.in (1.8 N.m) screw clamps terminals Philips No 2; Power circuit 15.93 lbf.in (1.8 N.m) screw clamp terminals pozidriv No 2
- Rated Breaking Capacity
- 450 A at 440 V for power circuit conforming to IEC 60947
- Utilisation Category
- AC-1; AC-3; AC-3e; AC-4
- Control Circuit Voltage Limits
- 0.3 to 0.6 Uc -40 to 140°F (-40 to 60°C) drop-out AC 50/60 Hz; 0.8 to 1.1 Uc -40 to 140°F (-40 to 60°C) operational AC 50 Hz; 0.85 to 1.1 Uc -40 to 140°F (-40 to 60°C) operational AC 60 Hz
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for signalling circuit; 40 A (at 140°F (60°C)) for power circuit
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Protective Cover
- With
- Power Dissipation Per Pole
- 3.2 W AC-1
- Minimum Switching Voltage
- 17 V for signalling circuit
- Average Impedance
- 2 mOhm - Ith 40 A 50 Hz for power circuit
- Permissible Ambient Air Temperature Around The Device
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
- Connections - Terminals
Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 16 mm²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 16 mm²) - cable stiffness: solid without cable end
- IP Degree Of Protection
- IP20 front face IEC 60529
- Electrical Durability
- 1.4 Mcycles 40 A AC-1 Less than or Equal to 440 V
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1; 63 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 40 A gG at Less than or Equal to 690 V coordination type 2 for power circuit
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Overvoltage Category
- III
- Inrush Power in VA
- 70 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 70 VA 50 Hz cos phi 0.75 (at 68°F (20°C))
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Hold-In Power Consumption in VA
- 7.5 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 7 VA 50 Hz cos phi 0.3 (at 68°F (20°C))
- Rated Insulation Voltage
- Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL
- Heat Dissipation
- 2 to 3 W at 50/60 Hz
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Compatibility Code
- LC1D
- Signalling Circuit Frequency
- 25 to 400 Hz
- Contact Compatibility
- M6
- Poles Description
- 4P
- Pollution Degree
- 3
- Rated Operational Current
- 40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit
- IRMS Rated Making Capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 450 A at 440 V for power circuit conforming to IEC 60947

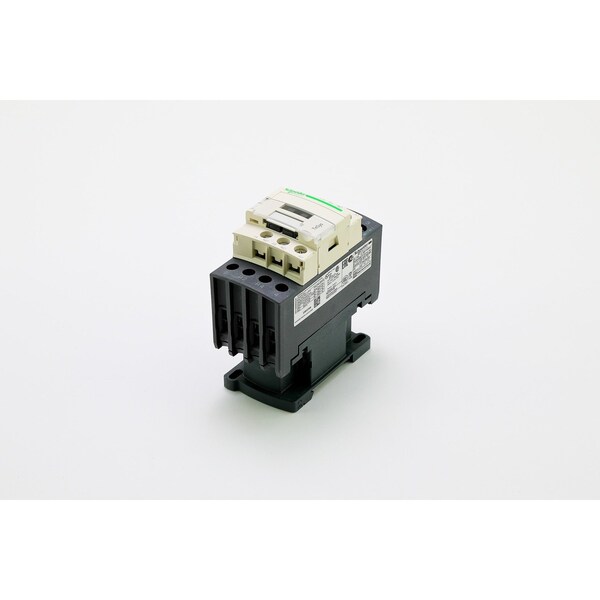

- Product Or Component Type
- Contactor
- Rated Short Time Withstand Current
- 240 A 104°F (40°C) - 10 s for power circuit; 380 A 104°F (40°C) - 1 s for power circuit; 50 A 104°F (40°C) - 10 min for power circuit; 120 A 104°F (40°C) - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC 25 to 400 Hz
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact
- Product Certifications
- UL; CSA; CCC; EAC; UKCA; CB; EU-RO-MR by DNV-GL
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Control Circuit Type
- AC 50/60 Hz
- Operating Time
- 12 to 22 ms closing; 4 to 19 ms opening
- Mechanical Robustness
- Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 8 Gn for 11 ms)
- Coil Technology
- Without built-in suppressor module
- Pole Contact Composition
- 2 NO + 2 NC
- Flame Retardance
- V1 conforming to UL 94
- Control Circuit Voltage
- 120 V AC 50/60 Hz
- Climatic Withstand
- IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
- Mounting Support
- Rail; Plate
