  13. 120VAC Mechanically Held Lighting Contactor 8P 30A
Shop All Lighting Contactors
Square D

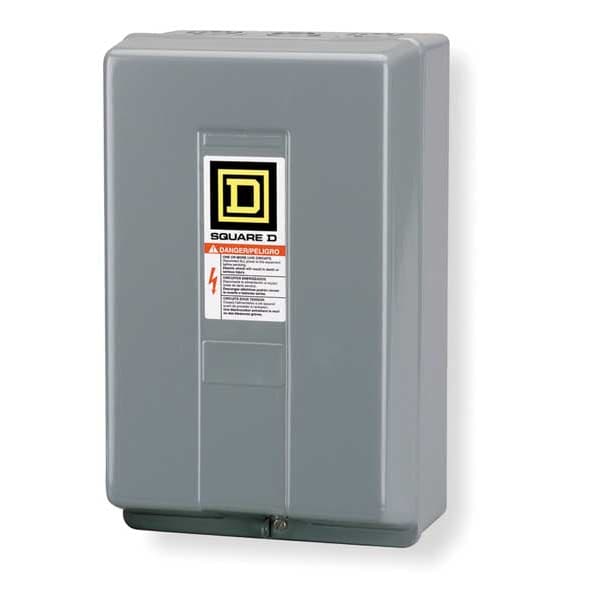

120VAC Mechanically Held Lighting Contactor 8P 30A

product price: $942.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Full Load Amps 30 A
  • Contactor Type Mechanically Held
  • Number of Poles 8
  • Coil Volts 120V AC
  • Height 12.69 in
See all product information

Product Information

Dimensions

Height 12.69 in
Width 7.81 in
Depth 6.03 in
Overall Height 12.68 in
Overall Width 7.8 in
Frame Size L
Overall Depth 6.02 in

Details

Item Lighting Magnetic Contactor
Full Load Amps 30 A
Contactor Type Mechanically Held
Number of Poles 8
Coil Volts 120V AC
Hz 50/60
Enclosure NEMA Rating 1
Standards CSA, REACH, RoHS, UL Listed
Inrush VA 180-180 VA 60 Hz; 170-170 VA 50 Hz; 25-25 VA 50/60 Hz
Control Circuit Separate control circuit
Current Rating 20-20 A tungsten; 30-30 A fluorescent
Features Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
Control Type No control units
Indicator No
Electrical Connections Screw-clamp terminals
Series 8903 Series Type LX
Full Load Current - Resistive 30 A
Reversing Capability Non-Reversing
Contactor Style Mechanically Held Lighting Contactor
Status Indicator No Indicator
NEMA Enclosure Rating 1
Fluorescent Lighting Current Rating 30 A
LED Lighting Current Rating 16 A
NEMA Enclosure Material Steel
Phase Three
Terminal Connection Type Screw Clamp Terminals
Full Load Current - Inductive 30 A
Number of Normally Open Main Contacts 8
Coil Voltage 110/120V AC
Frequency 50/60 Hz
Maximum Voltage Rating 600V AC
Tungsten Lighting Current Rating 20 A

Description

Lighting Magnetic Contactor, LED Lighting Current Rating 16 A, Coil Voltage 110/120V AC, Series 8903 Series Type LX, Number of Poles 8, NEMA Enclosure Rating 1, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size L, Full Load Current - Resistive 30 A, Full Load Current - Inductive 30 A, Maximum Voltage Rating 600V AC, Phase Three, Overall Height 12.68 in, Overall Width 7.8 in

Restrictions

  • Hazardous material
