Shop SQUARE D

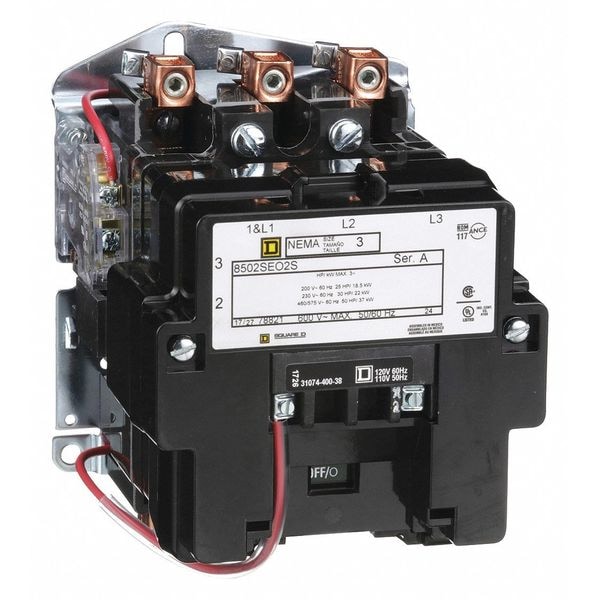

120VAC Non-Reversing Magnetic Contactor 3P 90A NEMA 3, Hz: 50/60

  • Mfr # 8502SEO2V02S
  • Zoro # G0851995
product price:
$
1,335.99
/ea
Free Shipping & Returns

Key Features

Action
Non-Reversing
Full Load Amps
90 A
Number of Poles
3
NEMA Contactor Size
3
Reversing
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
8502SEO2V02S
Zoro #
G0851995
UPC #
785901788218
Country of Origin
Korea, Republic of
Item
NEMA Magnetic Contactor
Action
Non-Reversing
Full Load Amps
90 A
Number of Poles
3
Coil Volts
120V AC
Reversing
No
HP @ 3 Phase - 208V
25 hp
HP @ 3 Phase - 575V
50 hp
HP @ 3 Phase - 240V
30 hp
HP @ 3 Phase - 480V
50 hp
Enclosure NEMA Rating
No Enclosure
Frame / Series / Class / Code
Class 8502
Standards
CSA, UL E78351 CCN NLDX
Hz
50/60 Hz
Auxiliary Contact Form
Auxiliary Contacts Not Included
Series
8502
Auxiliary Contact Composition
without
Local Signalling
no indicator
Product Or Component Type
contactor
Line Rated Current
90 A
Product Compatibility
circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V AC || fuse J 200 A maximum, SCCR: 100 kA at 600 V AC || fuse T 200 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC
Phase
Three
Product Certifications
UL listed file E78351 CCN NLDX || CSA
Control Circuit
separate control circuit
Contactor Application
non-reversing
Control Type
no control units
Nema Degree Of Protection
not rated (open device)
Poles Description
3P
Rated Power In Hp
25 HP 200 V AC || 30 HP 230 V AC || 50 HP 460 V AC || 50 HP 575 V AC
[Uc] Control Circuit Voltage
120 V AC 60 Hz || 110 V AC 50 Hz
Electrical Connection
screw clamp terminals
[Ue] Rated Operational Voltage
600 V AC
Contactor Style
NEMA
Horsepower @ Three Phase - 480V AC
50 hp
Reversing Capability
Non-Reversing
Coil Voltage
120V AC
Includes Auxiliary Contacts
No
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 208V AC
25 hp
Horsepower @ Three Phase - 600V AC
50 hp
Horsepower @ Single Phase - 240V AC
30 hp
Terminal Connection Type
Screw Clamp Terminals
Frequency
50/60 Hz
Embedded Surge Suppressor
No
Number of Auxillary Contacts
0
NEMA Enclosure Rating
No Enclosure
Full Load Current - Inductive
90 A
Horsepower @ Three Phase - 240V AC
30 hp
Short Circuit Current Rating
Circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 200 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 200 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC
Certifications
UL listed file E78351 CCN NLDX; CSA
Horsepower Rating
25 HP 200 V AC; 30 HP 230 V AC; 50 HP 460 V AC; 50 HP 575 V AC

Dimensions

NEMA Contactor Size
3
Height
7.09 in
Width
5.47 in
Depth
6.5 in
NEMA Size
3
Overall Height
7.09 in
Overall Depth
6.5 in
Overall Width
5.47 in

Description

NEMA Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size 3, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 90 A, Reversing Capability Non-Reversing, Overall Height 7.09 in, Overall Width 5.47 in, Terminal Connection Type Screw Clamp Terminals, Series 8502, Number of Auxillary Contacts 0, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 30 hp, Horsepower @ Three Phase - 480V AC 50 hp, Phase Three
