  13. 120VAC Reversing Hoist Contactor 3P 40A

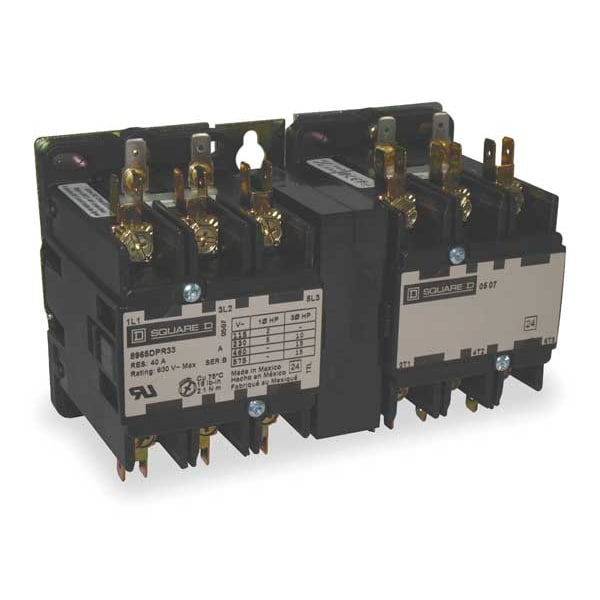

Square D 120VAC Reversing Hoist Contactor 3P 40A 8965DPR43V02 - main

120VAC Reversing Hoist Contactor 3P 40A

  • Mfr # 8965DPR43V02

  • Zoro # G1703256

product price: $1,510.99
/ea
Free Shipping & Returns

Key Features

Coil Volts
120V AC
HP @ 1 Phase - 120V
3 hp
HP @ 1 Phase - 230V
7 1/2 hp
HP @ 3 Phase - 230V
15 hp
HP @ 3 Phase - 480V
20 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8965DPR43V02
Zoro #
G1703256
UPC #
785901081357
Country of Origin
China

Dimensions

Width
6.87 in
Depth
3.07 in
Height
3.98 in
Overall Depth
3.07 in
Overall Height
3.98 in
Overall Width
6.87 in

Details

Item
Hoist Contactor
Coil Volts
120V AC
HP @ 1 Phase - 120V
3 hp
HP @ 1 Phase - 230V
7 1/2 hp
HP @ 3 Phase - 230V
15 hp
HP @ 3 Phase - 480V
20 hp
HP @ 3 Phase - 575V
20 hp
Action
Reversing
Number of Poles
3
Enclosure NEMA Rating
No Enclosure
Hz
50/60
Standards
CSA, REACH, RoHS, UL Listed
Full Load Amps-Inductive
40 A
Series
8965 Series Type DPR
Contactor Style
Hoist Definite Purpose Contactor
Frequency
50/60 Hz
Full Load Current - Inductive
40 A
Auxiliary Contact Module Capacity
2
Horsepower @ Three Phase - 600V AC
20 hp
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
15 hp
Horsepower @ Three Phase - 480V AC
20 hp
Maximum Voltage Rating
600V AC
Reversing Capability
Reversing
Horsepower @ Single Phase - 120V AC
3 hp
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Coil Voltage
110/120V AC
Phase
Three
Product Certifications
CSA; UL Listed
Maximum Horse Power Rating
3 hp 115 V AC, 1 phase; 7.5 hp 230 V AC, 1 phase; 15 hp 230 V AC, 3 phase; 20 hp 460 V AC, 3 phase; 20 hp 575 V AC, 3 phase
Product Or Component Type
Reversing Hoist Contactor
Rated Operational Voltage
600 V AC
Poles Description
3P
Control Circuit Voltage
110 V AC 50 Hz; 120 V AC 60 Hz

Description

Hoist Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 110/120V AC, Series 8965 Series Type DPR, Number of Poles 3, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Horsepower @ Single Phase - 120V AC 3 hp, Full Load Current - Resistive Not Applicable, Full Load Current - Inductive 40 A
