  13. 120VAC Reversing Magnetic Contactor 3P 90A NEMA 3

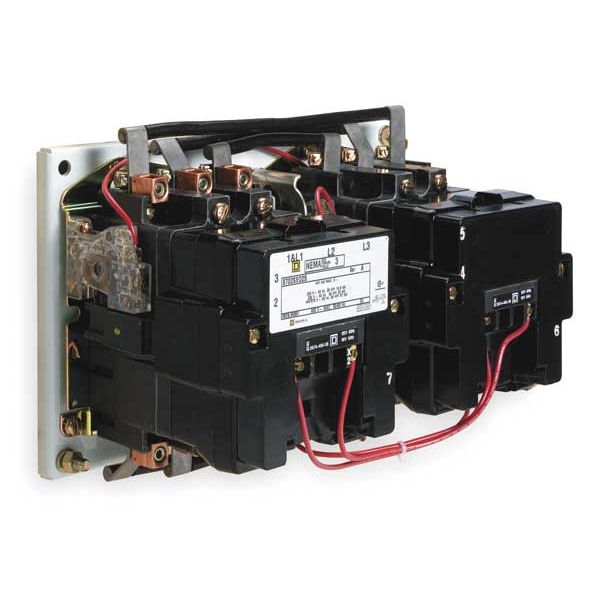

Square D 120VAC Reversing Magnetic Contactor 3P 90A NEMA 3 8702SEO2V02S - main

120VAC Reversing Magnetic Contactor 3P 90A NEMA 3

  • Mfr # 8702SEO2V02S

  • Zoro # G6485437

product price: $3,142.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
90 A
Action
Reversing
Number of Poles
3
Coil Volts
120V AC
NEMA Contactor Size
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8702SEO2V02S
Zoro #
G6485437
UPC #
785901808916
Country of Origin
Mexico

Dimensions

NEMA Contactor Size
3
Height
7.97 in
Width
12.72 in
Depth
7 in
NEMA Size
3
Overall Depth
7 in
Overall Width
12.72 in
Overall Height
7.97 in

Details

Item
Magnetic Contactor
Full Load Amps
90 A
Action
Reversing
Number of Poles
3
Coil Volts
120V AC
Reversing
Yes
HP @ 3 Phase - 208V
25 hp
HP @ 3 Phase - 240V
30 hp
HP @ 3 Phase - 575V
50 hp
HP @ 3 Phase - 480V
50 hp
Enclosure NEMA Rating
No Enclosure
Standards
CSA, UL Listed
Frame / Series / Class / Code
Class 8702
Hz
50/60
Auxiliary Contact Form
Auxiliary Contacts Not Included
Series
8702
Condition Of Use
horizontal
[Ue] Rated Operational Voltage
600 V AC
[Uc] Control Circuit Voltage
110 V AC 50 Hz || 120 V AC 60 Hz
Local Signalling
no indicator
Control Type
no control units
Wiring Mode
3 wires
Nema Degree Of Protection
not rated (open device)
Electrical Connection
screw clamp terminals
Contactor Application
reversing
Control Circuit
separate control circuit
Phase
Three
Product Certifications
UL Listed || CSA
Rated Power In Hp
25 HP 200 V AC || 30 HP 230 V AC || 50 HP 460 V AC || 50 HP 575 V AC
Line Rated Current
90 A
Poles Description
3P
Product Or Component Type
contactor
Horsepower @ Three Phase - 480V AC
50 hp
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
30 hp
Horsepower @ Single Phase - 240V AC
30 hp
Includes Auxiliary Contacts
No
Mounting Postion
Horizontal
Horsepower @ Three Phase - 208V AC
25 hp
Reversing Capability
Reversing
Coil Voltage
120V AC
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
50 hp
Embedded Surge Suppressor
No
Maximum Voltage Rating
600V AC
Contactor Style
NEMA
Terminal Connection Type
Screw Clamp Terminals
Full Load Current - Inductive
90 A
Number of Auxillary Contacts
0

Description

NEMA Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size 3, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 90 A, Reversing Capability Reversing, Overall Height 7.97 in, Overall Width 12.72 in, Terminal Connection Type Screw Clamp Terminals, Series 8702, Number of Auxillary Contacts 0, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 30 hp, Horsepower @ Three Phase - 480V AC 50 hp, Phase Three
