- Color
- Dark Gray
- Standards
- EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB/T 14048.5
- Contacts Operation
- Instantaneous
- IRMS Rated Making Capacity
- 140 A AC conforming to IEC 60947-5-1; 250 A DC conforming to IEC 60947-5-1
- Product Or Component Type

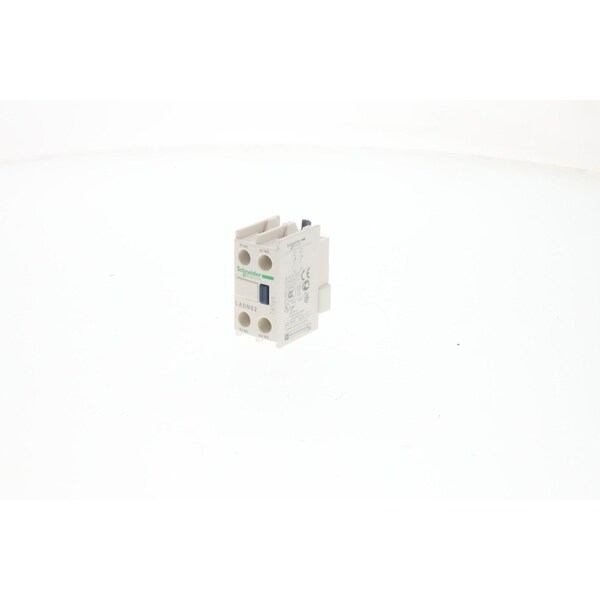

- Auxiliary contact block
- Range Compatibility
- TeSys D CAD; TeSys D LC1D; TeSys F LC1F; TeSys F CR1F; TeSys Deca CAD; TeSys Deca LC1D
- Tightening Torque
- 15.05 lbf.in (1.7 N.m) flat 6 mm; 15.05 lbf.in (1.7 N.m) Philips No 2; 15.05 lbf.in (1.7 N.m) pozidriv No 2
- Pole Contact Composition
- 2 NC
- Mechanical Durability
- 30 Mcycles
- Product Certifications
- CB; UL; CSA; CCC; EAC; UKCA
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact; 1.5 ms on energisation no overlap between NC and NO contact
- Rated Insulation Voltage
- 690 V IEC 60947-5-1; 600 V UL; 600 V CSA
- Environmental Characteristic
- Normal environment
- Insulation Resistance
- Greater than 10 MOhm
- Protective Treatment
- TH IEC 60068
- Minimum Switching Voltage
- 17 V
- Connections - Terminals
screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)rigid without cable end; screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)rigid without cable end
- Rated Operational Current
- 6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13; 0.1 A at 600 V DC-13
- Operating Altitude
- 9842.52 ft (3000 m)
- Ambient Air Temperature For Storage
- -76 to 176°F (-60 to 80°C)
- Protection Type
- GG fuse 10 A
- Product Name
- TeSys Deca
- Ambient Air Temperature For Operation
- 23 to 140°F (-5 to 60°C)
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C))
- IP Degree Of Protection
- IP20 conforming to IEC 60529
- Permissible Short-Time Rating
- 100 A 1 s; 120 A 500 ms; 140 A 100 ms
- Rated Operational Voltage
- 690 V AC 25 to 400 Hz
- Mounting Location
- Front
- Minimum Switching Current
- 5 mA
