  15. 30mm push button, Type K, illuminated momentary, 1.375 inch red mushroom, 24/28VAC/DC LED light module, no contacts, NEMA 4

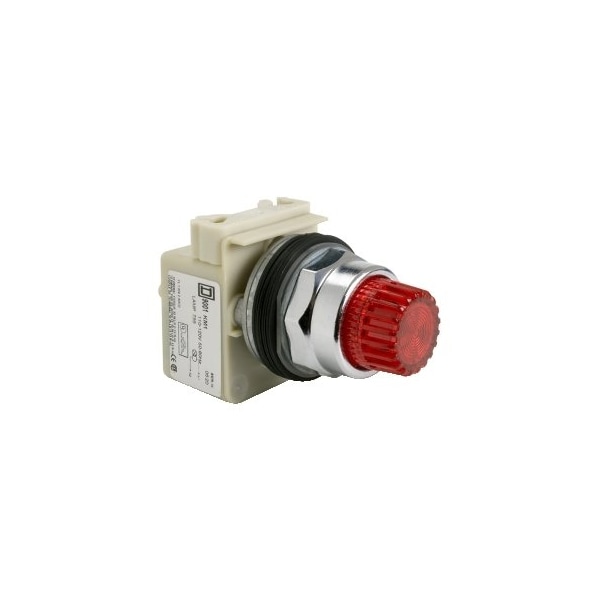

Square D 30mm push button, Type K, illuminated momentary, 1.375 inch red mushroom, 24/28VAC/DC LED light module, no contacts, NEMA 4 9001K2L35LRR20 - main

30mm push button, Type K, illuminated momentary, 1.375 inch red mushroom, 24/28VAC/DC LED light module, no contacts, NEMA 4

  • Mfr # 9001K2L35LRR20

  • Zoro # G010802196

product price: $145.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K2L35LRR20
Zoro #
G010802196
UPC #
785901633938
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
35 mm
Mounting Diameter
30 mm

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Standards
EN/IEC 60947-5-4, JIS C 852, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, UL 508, JIS C 4520
Type of Operator
spring return
Bezel Material
metal
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Contacts Type And Composition
without contact block
Range of Product
Harmony 9001K
Light Source
Red LED
[Us] Rated Supply Voltage
24...28 V
Ambient Air Temperature For Operation
-25-70°C
Operator Profile
red mushroom Ø 35 mm, unmarked
Mechanical Durability
5000000 cycles
Protective Treatment
TC
Bulb Base
BA 9s
Device Short Name
9001K
Light Source Colour
red
Shape of Signaling Unit Head
round
Cap/Operator or Lens Colour
red
Operator Additional Information
screw-on plastic
Nema Degree of Protection
NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Operating Position
any position
Light Block Supply
direct 24...28 V AC/DC
Electrical Shock Protection Class
class II IEC 61140
Shock Resistance
50 gn IEC 60068-2-27
Ip Degree of Protection
IP66 IEC 60529
Product or Component Type
head for illuminated push-button
Ambient Air Temperature For Storage
-40-70°C

Description

PUSHBUTTON OPERATOR 30MM TYPE K +OPTIONS

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
