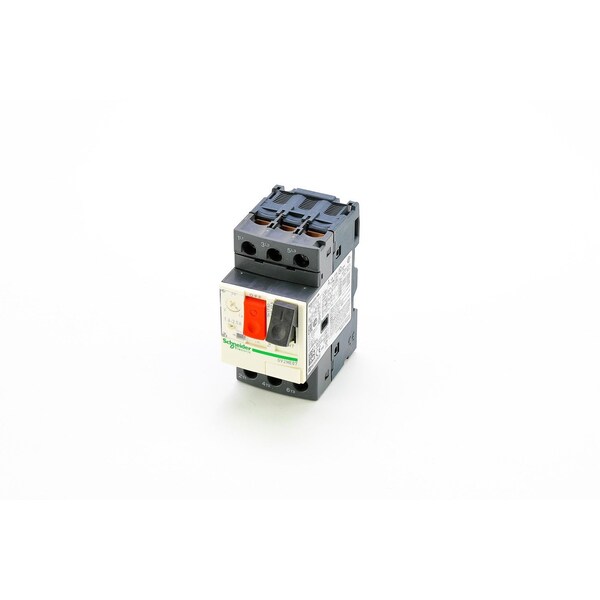

Square D 600VAC 40Amp Manual Starter GV2ME07 - main

600VAC 40Amp Manual Starter

  • Mfr # GV2ME07

  • Zoro # G310065789

product price: $180.99
/ea
Free Shipping & Returns

Key Features

Height
3.50 in (89 mm)
Standards
EN/IEC 60947-2; EN/IEC 60947-4-1
Width
1.77 in (45 mm)
Depth
3.09 in (78.5 mm)
Thermal Protection Adjustment Range
1.6 to 2.5 A IEC 60947-4-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV2ME07
Zoro #
G310065789
UPC #
-
Country of Origin
Indonesia

Dimensions

Height
3.50 in (89 mm)
Width
1.77 in (45 mm)
Depth
3.09 in (78.5 mm)

Details

Standards
EN/IEC 60947-2; EN/IEC 60947-4-1
Thermal Protection Adjustment Range
1.6 to 2.5 A IEC 60947-4-1
Fire Resistance
1760°F (960°C) IEC 60695-2-11
IP Degree Of Protection
IP20 IEC 60529
Poles Description
3P
Operating Altitude
6561.68 ft (2000 m)
Network Type
AC
Network Frequency
50/60 Hz IEC 60947-4-1
Mechanical Robustness
Shocks 30 Gn for 11 ms; Vibrations 5 Gn, 5 to 150 Hz
Product Name
TeSys GV2; TeSys Deca
Ambient Air Temperature For Storage
-40 to 176°F (-40 to 80°C)
Device Application
Motor protection
Ambient Air Temperature For Operation
-4 to 140°F (-20 to 60°C)
Magnetic Tripping Current
33.5 A
Product Certifications
CCC; UL; CSA; EAC; ATEX; LROS (Lloyds register of shipping); BV; RINA; DNV-GL; UKCA
Conventional Free Air Thermal Current
2.5 A IEC 60947-4-1
Climatic Withstand
IACS E10
Product Or Component Type
Motor circuit breaker
Color
Dark Gray
Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Rated Insulation Voltage
690 V AC 50/60 Hz IEC 60947-2
IK Degree Of Protection
IK04
Utilisation Category
Category A IEC 60947-2; AC-3 IEC 60947-4-1; AC-3e IEC 60947-4-1
Rated Duty
Continuous IEC 60947-4-1
Power Dissipation Per Pole
2.5 W
Breaking Capacity
100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2; 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2; 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2; 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2; 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Motor Power KW
0.75 kW 400/415 V AC 50/60 Hz; 1.1 kW 500 V AC 50/60 Hz; 1.5 kW 690 V AC 50/60 Hz
Fixing Mode
35 mm symmetrical DIN rail clipped; Panel screwed with adaptor plate)
Tightening Torque
15.05 lbf.in (1.7 N.m) screw clamp terminal
Line Rated Current
2.5 A
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 100% 500 V AC 50/60 Hz IEC 60947-2; 75% 690 V AC 50/60 Hz IEC 60947-2
Control Type
Push-button
Electrical Durability
100000 cycles AC-3 415 V In; 100000 cycles AC-3e 415 V In
Phase Failure Sensitivity
Yes IEC 60947-4-1
Trip Unit Technology
Thermal-magnetic
Rated Operational Voltage
690 V AC 50/60 Hz IEC 60947-2
Suitability For Isolation
Yes IEC 60947-1 § 7-1-6
Mechanical Durability
100000 cycles
