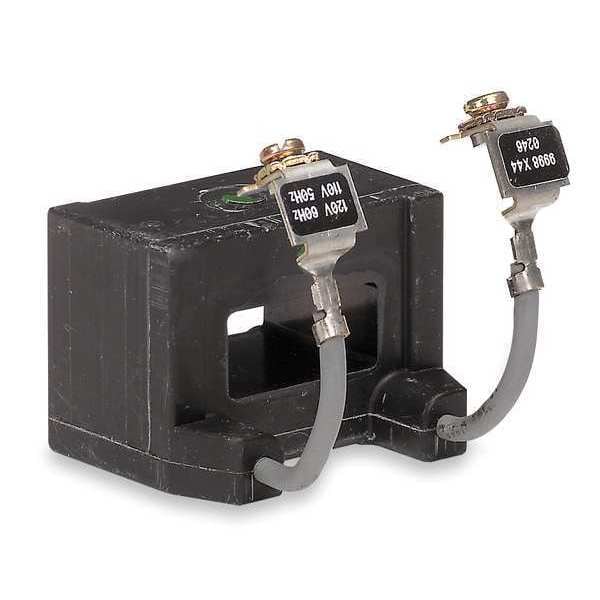

Square D AC Magnetic Coil 9998X44 - main

AC Magnetic Coil

  • Mfr # 9998X44

  • Zoro # G1709337

product price: $104.99
/ea
Free Shipping & Returns

Key Features

Starter Size
5
Coil Volts
120V AC
VA Rating
148
For Use With
Timers and Contactors, 8501 Relays
Hz
60
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9998X44
Zoro #
G1709337
UPC #
785901548843
Country of Origin
Mexico

Dimensions

Starter Size
5
Depth
4.25 in
Width
1.98 in
Height
1.44 in
NEMA Size
5

Details

Item
Replacement Coil
Coil Volts
120V AC
VA Rating
148
For Use With
Timers and Contactors, 8501 Relays
Hz
60
Contactor Type
NEMA
Product Or Component Type
coil
Control Circuit Voltage Limits
operational 0.85 to 1.1 Uc AC 50/60 Hz
Inrush Power In Va
148-148 VA 60 Hz || 143-143 VA 50 Hz
Electrical Connection
screw clamp terminals
Hold-In Power Consumption In Va
23-23 VA 60 Hz || 25-25 VA 50 Hz
[Uc] Control Circuit Voltage
110 V AC 50 Hz || 120 V AC 60 Hz
Tightening Torque
control circuit 1.02-1.36 N.m screw terminals
Relay Type
control relay
Awg Gauge
AWG 18 to AWG 12 copper
Compatible with Series
8501X Relays
Contactor Style
NEMA
Frequency
50/60 Hz
Coil Voltage
110/120V AC
Coil Power
148 VA
Control Circuit Voltage
110 V AC 50 Hz; 120 V AC 60 Hz
Coil Inrush Power
148 VA 60 Hz; 143 VA 50 Hz
Terminal Tightening Torque
Control circuit 9.03 to 12.04 lbf.in (1.02 to 1.36 N.m) screw terminals
Coil Sealed Power
23 VA 60 Hz; 25 VA 50 Hz

Description

Replacement Coil, Coil Voltage 110/120V AC, NEMA Size 5, Compatible with Series 8501X Relays, Contactor Style NEMA, Coil Power 148 VA, Frame Size Not Applicable, Frequency 50/60 Hz
