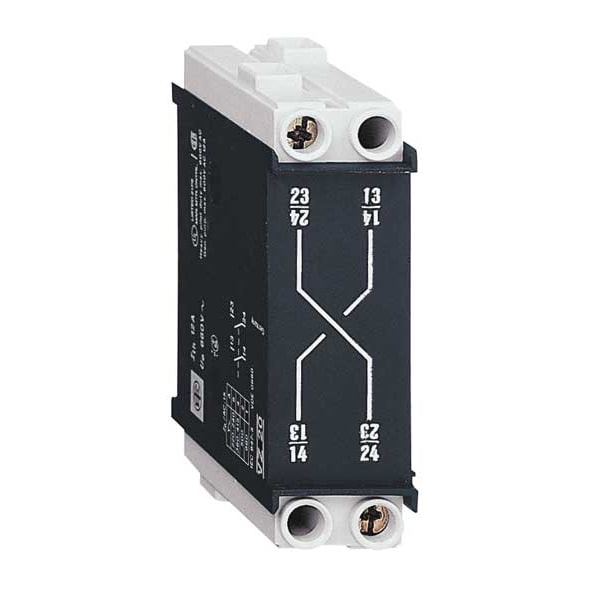

Square D Auxiliary Contact, 690VAC/250VDC VZ20 - main

Auxiliary Contact, 690VAC/250VDC

  • Mfr # VZ20

  • Zoro # G6136821

product price: $45.99
/ea

Key Features

Amps AC
10A
Includes
2 NO
Voltage
690V AC
Material
Non-Metallic
Description/Special Features
2NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VZ20
Zoro #
G6136821
UPC #
785901305675
Country of Origin
Czechia

Dimensions

Depth
1.91 in
Height
2.56 in
Width
0.79 in

Details

Item
Auxiliary Contact Block
Amps AC
10A
Includes
2 NO
Voltage
690V AC
Material
Non-Metallic
Description/Special Features
2NO
For Use With
Tesys Vario Series
Standards
CSA Certified, GL, UKCA, UL Listed
Mounting Mechanism
DIN Rail
Current Rating
10 A
Maximum Voltage
690V AC
Product Type
Auxiliary Contact Block
Network Frequency
50/60 Hz
Contacts Type And Composition
1 NO + 1 NO
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
Network Type
DC || AC
Tightening Torque
0.7-0.7 N.m screw clamp terminals
Device Short Name
VZ
Range
TeSys
Performance Level
high performance
Ambient Air Temperature For Operation
-20-50°C
Mounting Location
right
[Ith] Conventional Free Air Thermal Current
12 A
[Ithe] Conventional Enclosed Thermal Current
10 A
Product Compatibility
V3 || V01 || V2 || V0 || V6 || V4 || V1 || V5 || V02
[Uimp] Rated Impulse Withstand Voltage
8 kV
Electrical Durability
30000 cycles DC-11 || 100000 cycles AC-15
Mechanical Durability
100000 cycles
Product Or Component Type
auxiliary contact block
Protective Treatment
TC
Fire Resistance
960°C IEC 60695-2-1
Connections - Terminals
screw clamp terminals 2 0.75-1.5 mm² flexible - with cable end || screw clamp terminals 2 1-2.5 mm² solid
Ip Degree Of Protection
IP20 conforming to IEC 60529
Product Certifications
GL || UL || CSA || UKCA

Description

Auxiliary Contact, Current Rating 10 A, Depth 1.91 in, For Use With Tesys Vario Series, Height 2.56 in, Includes 2 NO, Material Non-Metallic, Maximum Voltage 690V AC, Mounting Mechanism DIN Rail, Product Type Auxiliary Contact Block, Standards CSA Certified, GL, UKCA, UL Listed, Width 0.79 in
