  11. Buck Boost Transformer, 1.5 kVA, NEMA 3R, 12/24V AC, 120/240V AC

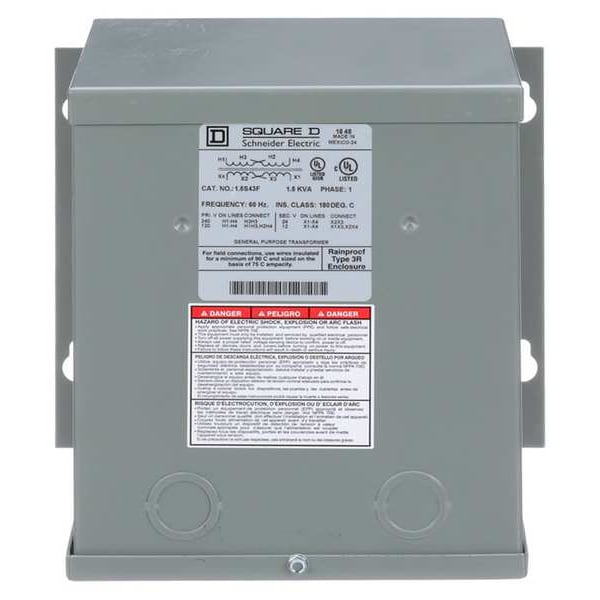

Square D Buck Boost Transformer, 1.5 kVA, NEMA 3R, 12/24V AC, 120/240V AC 1.5S43F - main

CAD Drawings

Download CAD Files

Buck Boost Transformer, 1.5 kVA, NEMA 3R, 12/24V AC, 120/240V AC

  • Mfr # 1.5S43F

  • Zoro # G3099266

CAD Available
product price: $984.59
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage - Transformer
120/240V AC
Output Voltage
12/24V AC
Power Rating
1.5 kVA
Phase
1
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1.5S43F
Zoro #
G3099266
UPC #
785901876441
Country of Origin
Mexico

Dimensions

Overall Height
8.30 in
Overall Width
8.7 in
Overall Depth
6.6 in
Width
8.7 in
Height
8.3 in
Depth
6.6 in
Knockout Size - Transformer
1/2 in, 3/4 in
Manufacturers Warranty Length
18 mo

Details

CAD Available
Yes
Item
Buck Boost Transformer
Input Voltage - Transformer
120/240V AC
Output Voltage
12/24V AC
Power Rating
1.5 kVA
Phase
1
Mounting - Transformer
Wall
Hz - Electrical
60 Hz
NEMA Enclosure Rating
NEMA 3R
IP Rating
IP54
Outdoor Rated - Transformer
Yes
Color
Gray
Enclosure Finish
Powder Coated
VA Rating - Transformer
1.5 kVA
Standards
CSA, cULus, RoHS Compliant, UL and cUL Listed (UL 506)
Phase - Electrical
1
Output Voltage - Transformer
12V AC, 24V AC
Temp. Rise
115 Degrees C
Enclosure Rating
NEMA 3R
Features
Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
Insulation Max. Temp.
180 °C
Insulation Temperature Rating
356 Degrees F
Includes Knockouts
Knockouts Included
Temperature Rise
115°C

Description

Buck Boost Transformer, Input Voltage - Transformer 120V AC, 240V AC, Output Voltage - Transformer 12V AC, 24V AC, VA Rating - Transformer 1.5 kVA, Phase - Electrical 1, Hz - Electrical 60 Hz, Mounting - Transformer Wall, Outdoor Rated - Transformer Yes, Temp. Rise 115 Degrees C, Enclosure Rating NEMA 3R, IP Rating IP54, Color Gray
