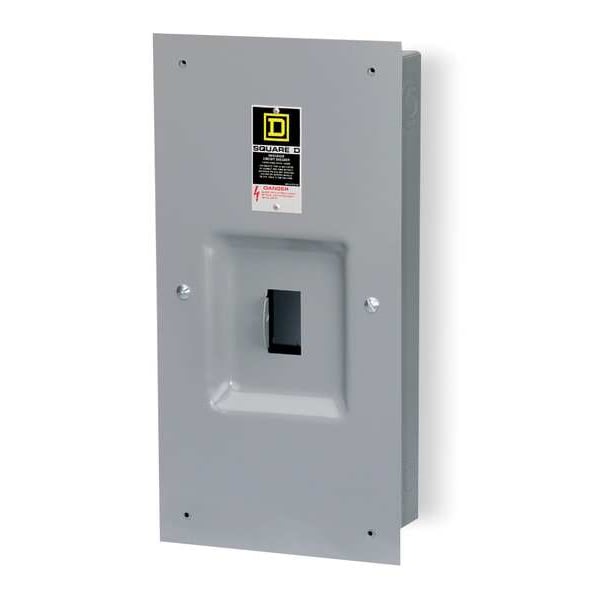

Circuit Breaker Enclosure, LAL, Q4L, LHL, 3 Spaces, 400A
- Mfr # LA400F
- Zoro # G3037124
product price:Â
$
368.99
/ea
Free Shipping & Returns
Key Features
Number of Spaces
3
Amps
400A
Height
42.24 in
Width
13.74 in
Depth
7.24 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LA400F
- Zoro #
- G3037124
- UPC #
- 785901508007
- Country of Origin
- Korea, Republic of
- Item
- Circuit Breaker Enclosure
- Number of Spaces
- 3
- Amps
- 400A
- Series
- LAL, Q4L, LHL
- Recommended Flush Cover
- Included
- Enclosure Material
- Steel
- Enclosure NEMA Rating
- NEMA 1
- Finish
- Powder Coated
- For Use With
- Square D LAL and LHL Circuit Breakers
- Material
- Steel
- Mounting Style
- Flush
- NEMA Rating
- 1
- Color
- Gray
- Recommended Neutral Assmebly Kit
- 2CP19, Mfr. No.SN225KA
- Max. Operating Temp.
- 140 Degrees F
- Conduit Provision
- 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 3 1/2
- Cover Closure Method
- Lift-Off
- Cover Attachment Style
- Screw On
- Location
- Indoor
- Recommended Service Ground Kit
- 2DH17
- Min. Operating Temp.
- 32 Degrees F
- Product Destination
- circuit breaker LAL/LHL/Q4L 3P || circuit breaker LAL/LHL/Q4L 2P
- Poles Description
- 3P || 2P
- Product Certifications
- UL || CSA
Description
Circuit Breaker Enclosure, Material Steel, NEMA Rating 1, Exterior Height 42.24 in, Exterior Width 13.74 in, Exterior Depth 7.24 in, For Use With Square D LAL and LHL Circuit Breakers, Powder Coated Finish, Mounting Style Flush, 400 A Amps, Number of Spaces 3, Location Indoor, Gray, Max. Operating Temp. 140 Degrees F, Min. Operating Temp. 32 Degrees F, Conduit Provision 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 3 1/2, Cover Attachment Style Screw On, Cover Closure Method Lift-Off
