Shop All Replacement Coils
Square D

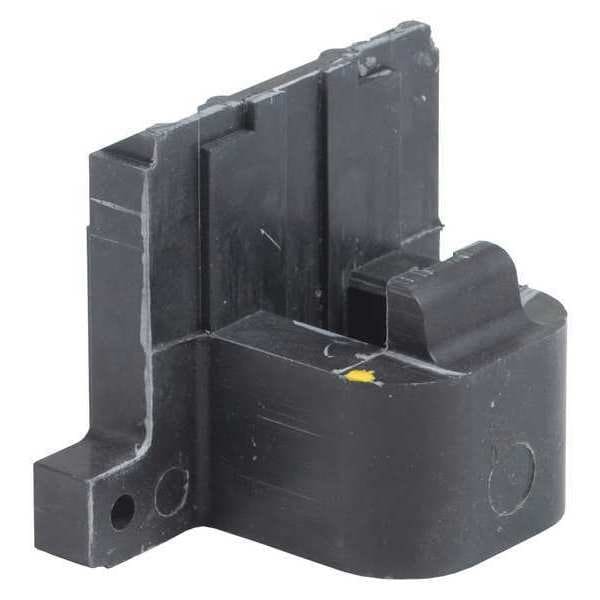

Coil, Magnetic, 480vac

original price: $170.15
26% off
new price: $124.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Use With SA Series A, SB, SC, SM
  • Coil Volts 480V AC
  • VA Rating 245
  • Starter Size 00, 1
  • Hz 60
See all product information

Product Information

Dimensions

Starter Size 00, 1
Depth 1.90 in (48.3 mm)
Width 3.21 in (81.5 mm)
Height 2.15 in (54.7 mm)
NEMA Size 0, 00, 1

Details

Item Replacement Coil
For Use With SA Series A, SB, SC, SM
Coil Volts 480V AC
VA Rating 245
Hz 60
Contactor Type NEMA
Compatible with Series 8502 Type SA Series A Contactors, 8502 Type SA Series A Starters, 8502 Type SB Contactors, 8502 Type SB Starters, 8502 Type SC Contactors, 8502 Type SC Starters, 8903 Type SM Lighting Contactors
Coil Power 232 VA, 245 VA
Coil Voltage 440/480V AC
Contactor Style NEMA
Frequency 50/60 Hz
Rated Operational Voltage 480 V AC 60 Hz; 440 V AC 50 Hz
Accessory / Separate Part Destination Class 8502 type SA (series A)/SB/SC contactor; Class 8536 type SA (series A)/SB/SC starter; Class 8903 type SM lighting contactor
Product Or Component Type Coil
Average Consumption 27 VA; 26 VA
Inrush Power in VA 232 VA; 245 VA

Description

Replacement Coil, Coil Voltage 440/480V AC, NEMA Size 0, 00, 1, Compatible with Series 8502 Type SA Series A Contactors, 8502 Type SA Series A Starters, 8502 Type SB Contactors, 8502 Type SB Starters, 8502 Type SC Contactors, 8502 Type SC Starters, 8903 Type SM Lighting Contactors, Contactor Style NEMA, Coil Power 232 VA, 245 VA, Frame Size Not Applicable, Frequency 50/60 Hz
