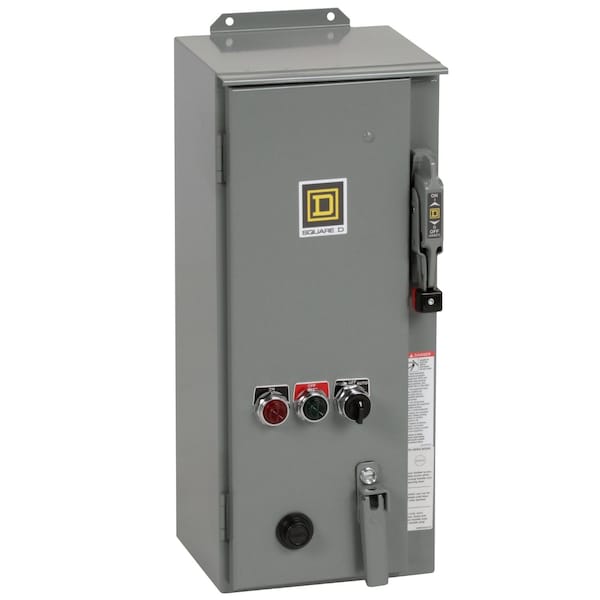

Combination Starter, 120V AC, 27A, 3 Poles
Mfr # 8539SCASP3
Zoro # G3301134
product price:Â
$
3,722.99
/ea
Free Shipping & Returns
Key Features
Voltage
120V AC
Amps
27 A
Number of Poles
3
Height
24.24 in
Width
9.62 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8539SCASP3
- Zoro #
- G3301134
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Height
- 24.24 in
- Width
- 9.62 in
- Length
- 3.25 in
- Depth
- 9.84 in
- Nema Size
- 1
Details
- Item
- Combination Starter
- Voltage
- 120V AC
- Amps
- 27 A
- Number of Poles
- 3
- Auxiliary Contact Composition
- 2 NO + 2 NC
- Breaking Capacity
- 100 kA 480 V AC || 35 kA 600 V AC
- Nema Degree Of Protection
- NEMA 12 painted sheet steel with external reset
- Control Type
- selector switch HAND-OFF-AUTO)
- Thermal Overload Type
- melting alloy 3
- Product Or Component Type
- Combination Starter
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Motor Starter Type
- non reversing
- Local Signalling
- red indicator on LED || green indicator off LED
- Disconnector Device Type
- circuit breaker, 30 A, electrical SPDT
- Maximum Horse Power Rating
- 0.25-5 hp 200 V AC, 3 phase || 0.25-7.5 hp 230 V AC, 3 phase || 0.25-10 hp 460 V AC, 3 phase || 0.25-10 hp 575 V AC, 3 phase
- Control Circuit
- separate control circuit
- [Ue] Rated Operational Voltage
- 600 V AC
- Product Certifications
- CSA file 584 class 3211 04 || UL listed file E152395 CCN NKJH || UL listed file E152395 CCN NKJH7
Description
Combination starter,circuit breaker,Si
