  11. Control Transformer, 100 VA, Not Rated, 110/220V AC, 120/240V AC, 115/230V AC

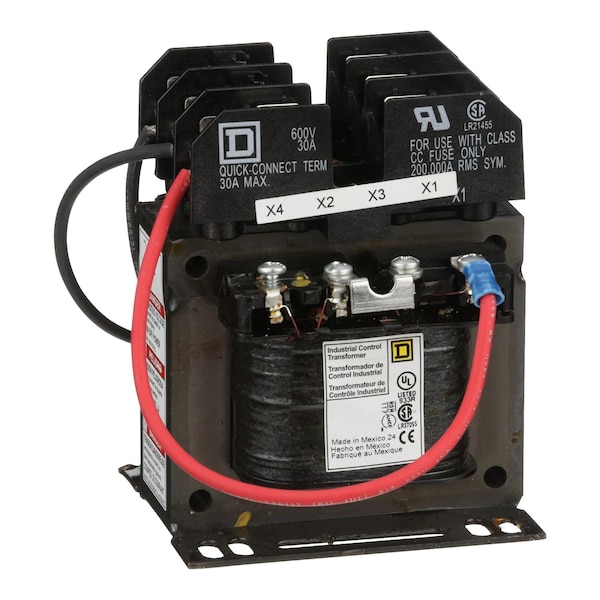

Square D Control Transformer, 100 VA, Not Rated, 110/220V AC, 120/240V AC, 115/230V AC 9070TF100D31 - main

Control Transformer, 100 VA, Not Rated, 110/220V AC, 120/240V AC, 115/230V AC

  • Mfr # 9070TF100D31

  • Zoro # G0859105

product price: $316.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
230/460V AC, 240/480V AC, 220/440V AC
Output Voltage
110/220V AC, 120/240V AC, 115/230V AC
Power Rating
100 VA
Phase
1
Hz - Electrical
50/60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070TF100D31
Zoro #
G0859105
UPC #
785901712046
Country of Origin
Mexico

Dimensions

Overall Height
4.18 in
Overall Width
3.38 in
Overall Depth
3.34 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
230/460V AC, 240/480V AC, 220/440V AC
Output Voltage
110/220V AC, 120/240V AC, 115/230V AC
Power Rating
100 VA
Phase
1
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Fused
Yes
Green Environmental Attribute
Mercury Free; Pvc Free
Standards
UL listed file E61239; CSA file LR37055 guide 184-N-90
Includes
Top Mounted Fuse Block
Material
copper: winding
Winding Material - Transformer
Copper
Enclosure Type
Open
Insulation Max. Temp.
105 °C
Secondary Connection
Screw clamp terminals
Primary Connection
Screw clamp terminals
Primary Voltage
240 x 480 V 120/240 V, 230 x 460 V 115/230 V, 220 x 440 V 110/220 V
Insulation Temperature
105°C
Rated Power In Va
100 VA UL, 100 VA CSA, 100 VA NOM, 100 VA CE
Range of Product
TF
Nema Degree of Protection
not rated (open device)
Fuse Type
0.41 x 1.50 in CC top
Product Compatibility
FSC1
Temperature Rise
55°C

Description

Trfmr Control 100Va 240/480V120/240V
