  6. Control Transformer, 100 VA, Not Rated, 24V AC, 120/240V AC

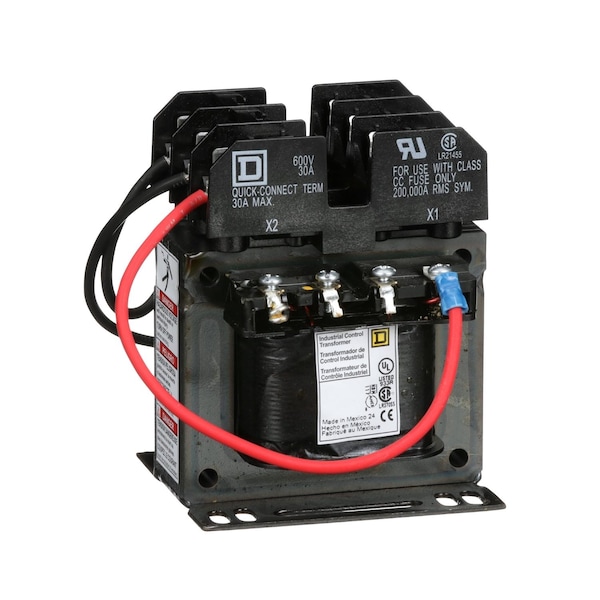

Square D Control Transformer, 100 VA, Not Rated, 24V AC, 120/240V AC 9070TF100D23 - main

Control Transformer, 100 VA, Not Rated, 24V AC, 120/240V AC

  • Mfr # 9070TF100D23

  • Zoro # G3573014

product price:  $231.84
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
120/240V AC
Output Voltage
24V AC
Power Rating
100 VA
Phase
1
Hz - Electrical
50/60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9070TF100D23
Zoro #
G3573014
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Height
3.59 in
Overall Width
3 3/4 in
Overall Depth
4 1/2 in

Details

Item
Control Transformer
Input Voltage - Transformer
120/240V AC
Output Voltage
24V AC
Power Rating
100 VA
Phase
1
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
55 deg C
Green Environmental Attribute
Mercury Free; Pvc Free
Secondary Connection
Screw clamp terminals
Standards
UL Listed; CSA
Fused
Yes
Enclosure Type
Open
Primary Connection
Screw clamp terminals
Includes
Top Mounted Fuse Block
Insulation Max. Temp.
105 °C
Rated Power In Va
100 VA UL, 100 VA CSA, 100 VA NOM, 100 VA CE
Primary Voltage
120 x 240 V 24 V
Fuse Type
10.3 x 38 mm CC top
Insulation Temperature
105°C
Range of Product
TF
Nema Degree of Protection
not rated (open device)

Description

INDUSTRIAL CONTROL TRANSFORMER 100VA 120
