  11. Control Transformer, 1000 VA, Not Rated, 115/230V AC, 380/400/415V

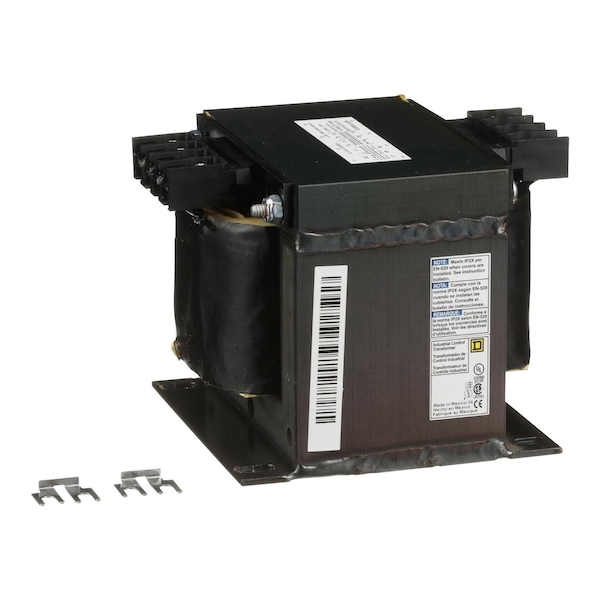

Square D Control Transformer, 1000 VA, Not Rated, 115/230V AC, 380/400/415V 9070T1000D33 - main

Control Transformer, 1000 VA, Not Rated, 115/230V AC, 380/400/415V

  • Mfr # 9070T1000D33

  • Zoro # G0572909

product price: $709.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
380/400/415V
Output Voltage
115/230V AC
Power Rating
1000 VA
Phase
1
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070T1000D33
Zoro #
G0572909
UPC #
785901905851
Country of Origin
Mexico

Dimensions

Overall Height
4.51 in
Overall Width
5 1/4 in
Overall Depth
6.3 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
380/400/415V
Output Voltage
115/230V AC
Power Rating
1000 VA
Phase
1
NEMA Enclosure Rating
Not Rated
Green Environmental Attribute
Mercury Free; Pvc Free
Standards
UL listed file E61239; CSA file LR37055 guide 184-N-90
Material
copper: winding
Insulation Max. Temp.
180 °C
Winding Material - Transformer
Copper
Primary Connection
Screw clamp terminals
Secondary Connection
Screw clamp terminals
Enclosure Type
Open
Range of Product
T
Product Compatibility
FSC2
Pvc Free
Yes
Rated Power In Va
1000 VA UL, 1000 VA CSA, 1000 VA NOM, 630 VA CE
Nema Degree of Protection
not rated (open device)
Primary Voltage
380/400/415 V 115/230 V
Insulation Temperature
180°C
Temperature Rise
115°C

Description

Xfmr Control 1000Va Multiple Voltages
