  11. Control Transformer, 150 VA, Not Rated, 115/230V AC, 380/400/415V

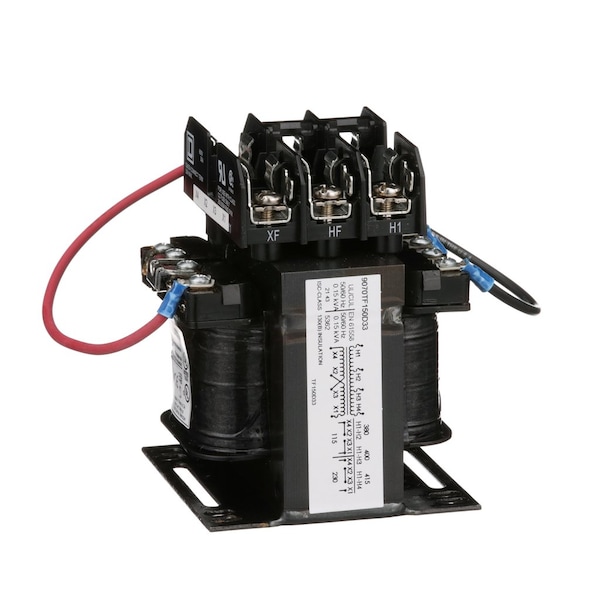

Square D Control Transformer, 150 VA, Not Rated, 115/230V AC, 380/400/415V 9070TF150D33 - main

Control Transformer, 150 VA, Not Rated, 115/230V AC, 380/400/415V

  • Mfr # 9070TF150D33

  • Zoro # G0859087

product price: $879.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
380/400/415V
Output Voltage
115/230V AC
Power Rating
150 VA
Phase
1
Hz - Electrical
50/60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070TF150D33
Zoro #
G0859087
UPC #
785901707332
Country of Origin
Mexico

Dimensions

Overall Height
4 1/2 in
Overall Width
3 3/4 in
Overall Depth
3.59 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
380/400/415V
Output Voltage
115/230V AC
Power Rating
150 VA
Phase
1
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Fused
Yes
Green Environmental Attribute
Mercury Free; Pvc Free
Standards
UL listed file E61239; CSA file LR37055 guide 184-N-90
Includes
Top Mounted Fuse Block
Material
Copper: winding
Secondary Connection
Screw clamp terminals
Insulation Max. Temp.
105 °C
Primary Connection
Screw clamp terminals
Enclosure Type
Open
Winding Material - Transformer
Copper
Fingersafe Cover Compatibility
FSC1
Temperature Rise
55°C
Primary To Secondary Voltage
380/400/415 V 115/230 V
Fuse Type
10.3 x 38 mm CC top
Insulation Temperature
221°F (105°C)
Nema Degree of Protection
not rated (open device)
Range of Product
TF
Rated Power In Va
150 VA UL, 150 VA CSA, 150 VA NOM, 150 VA CE

Description

Trfmr Control 150Va Multiple Voltages
