  11. Control Transformer, 150 VA, Not Rated, 99/120/130V, 240/416/480/600V

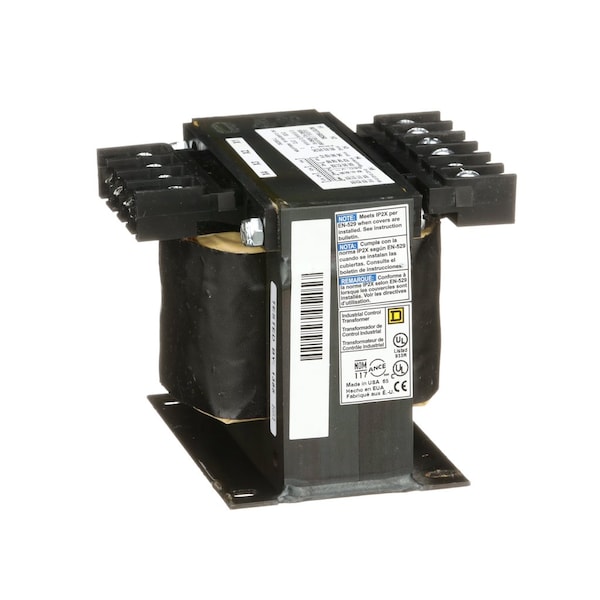

Square D Control Transformer, 150 VA, Not Rated, 99/120/130V, 240/416/480/600V 9070T150D50 - main

Control Transformer, 150 VA, Not Rated, 99/120/130V, 240/416/480/600V

  • Mfr # 9070T150D50

  • Zoro # G0859157

product price: $415.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
240/416/480/600V
Output Voltage
99/120/130V
Power Rating
150 VA
Phase
1
Hz - Electrical
50/60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070T150D50
Zoro #
G0859157
UPC #
785901327264
Country of Origin
United States

Dimensions

Overall Height
3.84 in
Overall Width
4 1/2 in
Overall Depth
4.74 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
240/416/480/600V
Output Voltage
99/120/130V
Power Rating
150 VA
Phase
1
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Standards
UL listed file E61239; CSA file LR37055 guide 184-N-90
Green Environmental Attribute
Mercury Free; Pvc Free
Material
copper: winding
Enclosure Type
Open
Insulation Max. Temp.
105 °C
Secondary Connection
Screw clamp terminals
Winding Material - Transformer
Copper
Primary Connection
Screw clamp terminals
Nema Degree of Protection
not rated (open device)
Insulation Temperature
105°C
Pvc Free
Yes
Primary Voltage
240/416/480/600 V 99/120/130 V, 230/400/460/575 V 95/115/125 V, 220/380/440/550 V 90/110/120 V, 208/360/416/520 V 85/100/110 V
Rated Power In Va
150 VA UL, 150 VA CSA, 150 VA NOM, 150 VA CE
Product Compatibility
FSC23
Range of Product
T
Temperature Rise
55°C

Description

Trfmr Control 150Va Multiple Voltages
