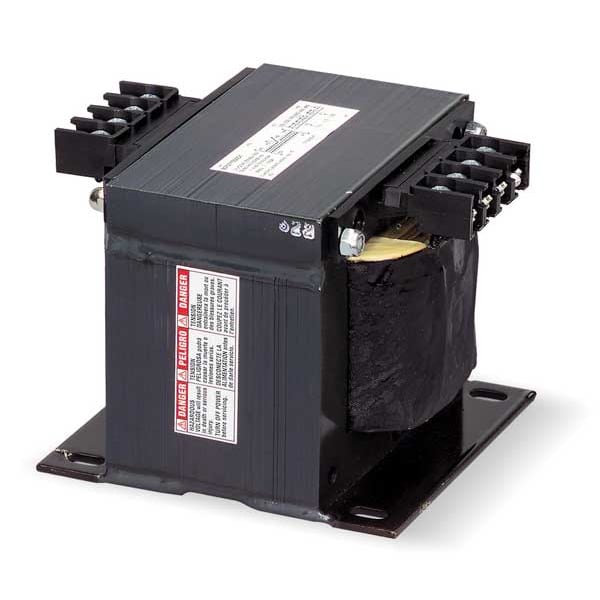

Control Transformer, 2 kVA, Not Rated, 120V AC, 277V AC
Mfr # 9070T2000D4
Zoro # G1291114
product price:Â $1,173.99
/ea
Free Shipping & Returns
Key Features
Input Voltage - Transformer
277V AC
Output Voltage
120V AC
Power Rating
2 kVA
Phase
Single
Mounting - Transformer
Foot
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
9070T2000D4
Zoro #
G1291114
UPC #
785901313830
Country of Origin
Korea, Republic of
Dimensions
Overall Height
6.17 in
Overall Width
7.06 in
Overall Depth
7.17 in
Manufacturers Warranty Length
10 yr
Details
Item
Control Transformer
Input Voltage - Transformer
277V AC
Output Voltage
120V AC
Power Rating
2 kVA
Phase
Single
Mounting - Transformer
Foot
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
115 deg C
Fused
No
Enclosure Style - Transformer
Open
Protective Device
None
Enclosure Finish
Epoxy Resin Varnish
Standards
CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Green Environmental Attribute
Mercury Free; Pvc Free
Winding Material - Transformer
Copper
Insulation Max. Temp.
180 °C
Enclosure Type
Open
Secondary Connection
Screw clamp terminals
Primary Connection
Screw clamp terminals
Description
Control Transformer, Input Voltage - Transformer 277V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 2 kVA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Epoxy Resin Varnish
