  11. Control Transformer, 200 VA, Not Rated, 120V AC, 208V AC

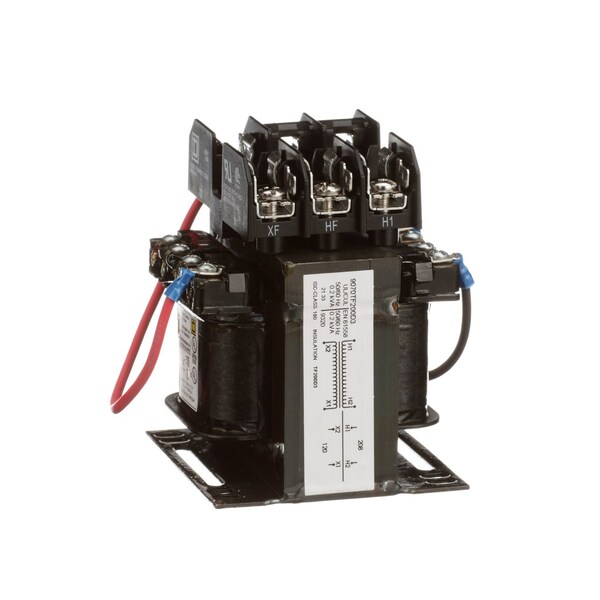

Square D Control Transformer, 200 VA, Not Rated, 120V AC, 208V AC 9070TF200D3 - main

Control Transformer, 200 VA, Not Rated, 120V AC, 208V AC

  • Mfr # 9070TF200D3

  • Zoro # G0851527

product price: $303.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
208V AC
Output Voltage
120V AC
Power Rating
200 VA
Phase
1
Hz - Electrical
50/60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070TF200D3
Zoro #
G0851527
UPC #
785901391593
Country of Origin
Mexico

Dimensions

Overall Height
4 1/2 in
Overall Width
3 3/4 in
Overall Depth
3.59 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
208V AC
Output Voltage
120V AC
Power Rating
200 VA
Phase
1
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Standards
CSA file LR37055 guide 184-N-90; UL listed file E61239
Includes
Top Mounted Fuse Block
Green Environmental Attribute
Mercury Free; Pvc Free
Fused
Yes
Material
copper: winding
Enclosure Type
Open
Winding Material - Transformer
Copper
Primary Connection
Screw clamp terminals
Insulation Max. Temp.
130 °C
Secondary Connection
Screw clamp terminals
Primary Voltage
208 V 120 V
Nema Degree of Protection
not rated (open device)
Insulation Temperature
130°C
Fuse Type
0.41 x 1.50 in CC top
Product Compatibility
FSC1
Range of Product
TF
Rated Power In Va
200 VA UL, 200 VA CSA, 200 VA NOM, 200 VA CE
Temperature Rise
80°C

Description

Transformer Control 200Va 208V120V
