  11. Control Transformer, 200 VA, Not Rated, 120V AC, 240/480V AC

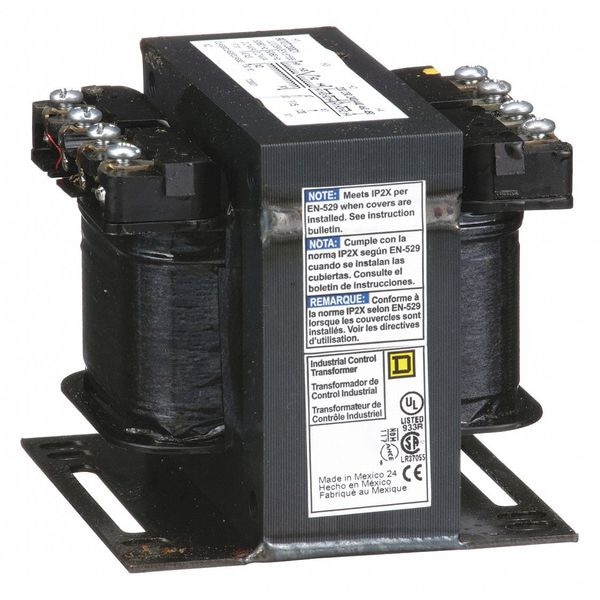

Square D Control Transformer, 200 VA, Not Rated, 120V AC, 240/480V AC 9070T200D1 - main

CAD Drawings

Download CAD Files

Control Transformer, 200 VA, Not Rated, 120V AC, 240/480V AC

  • Mfr # 9070T200D1

  • Zoro # G1261023

CAD Available
product price: $216.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage - Transformer
240/480V AC
Output Voltage
120V AC
Power Rating
200 VA
Phase
1
Mounting - Transformer
Foot
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070T200D1
Zoro #
G1261023
UPC #
785901904663
Country of Origin
Mexico

Dimensions

Overall Height
3.2 in
Overall Width
3.59 in
Overall Depth
3 3/4 in
Manufacturers Warranty Length
10 yr

Details

CAD Available
Yes
Item
Control Transformer
Input Voltage - Transformer
240/480V AC
Output Voltage
120V AC
Power Rating
200 VA
Phase
1
Mounting - Transformer
Foot
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Enclosure Style - Transformer
Open
Protective Device
None
Standards
CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Fused
No
Enclosure Finish
Epoxy Resin Varnish
Green Environmental Attribute
Mercury Free; Pvc Free
Enclosure Type
Open
Primary Connection
Screw clamp terminals
Insulation Max. Temp.
130 °C
Winding Material - Transformer
Copper
Material
Copper: winding
Secondary Connection
Screw clamp terminals
Primary To Secondary Voltage
240 x 480 V 120 V; 230 x 460 V 115 V; 220 x 440 V 110 V
Certifications
UL listed file E61239; CSA file LR37055 guide 184-N-90
Insulation Temperature
266°F (130°C)
Temperature Rise
80°C
Fingersafe Cover Compatibility
FSC1

Description

The Square D by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 200VA and is 1 phase. It has a 240x480V primary voltage and 120V secondary voltage. It also has a temperature rise of 80 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
