Shop SQUARE D

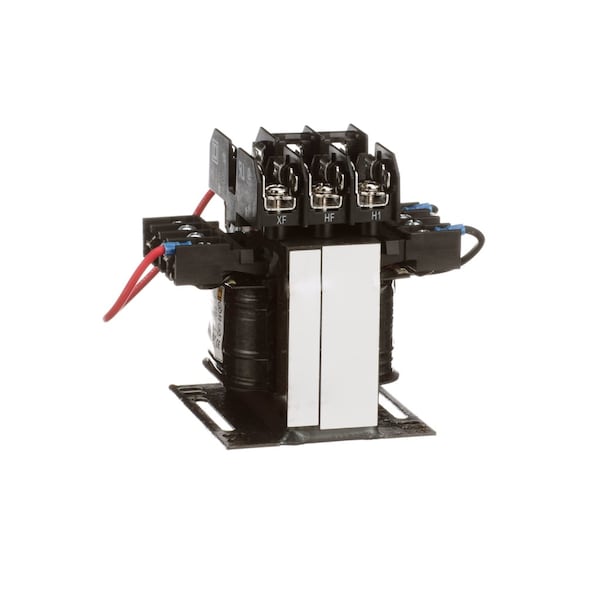

Control Transformer, 200 VA, Not Rated, 12/24V AC, 120/240V AC

  • Mfr # 9070TF200D5

  • Zoro # G0859139

product price:
$
187.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
120/240V AC
Output Voltage
12/24V AC
Power Rating
200 VA
Phase
1
Hz - Electrical
50/60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9070TF200D5
Zoro #
G0859139
UPC #
785901414308
Country of Origin
Mexico

Dimensions

Overall Height
4 1/2 in
Overall Width
3 3/4 in
Overall Depth
3.59 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
120/240V AC
Output Voltage
12/24V AC
Power Rating
200 VA
Phase
1
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
80°C
Green Environmental Attribute
Mercury Free; Pvc Free
Fused
Yes
Includes
Top Mounted Fuse Block
Standards
UL Listed; CSA
Material
Copper: winding
Insulation Max. Temp.
130 °C
Secondary Connection
Screw clamp terminals
Enclosure Type
Open
Primary Connection
Screw clamp terminals
Winding Material - Transformer
Copper
Primary To Secondary Voltage
600 V 120 V; 575 V 115 V; 550 V 110 V
Fingersafe Cover Compatibility
FSC1
Product Certifications
CSA; UL Listed
Insulation Temperature
266°F (130°C)
Fuse Type
10.3 x 38 mm CC top
Nema Degree of Protection
not rated (open device)
Rated Power In Va
200 VA UL, 200 VA CSA, 200 VA NOM, 200 VA CE
Range of Product
TF
Primary Voltage
600 V 120 V, 575 V 115 V, 550 V 110 V

Description

Trfmr Control 200Va 600V120V
