  11. Control Transformer, 250 VA, Not Rated, 99/120/130V, 240/416/480/600V

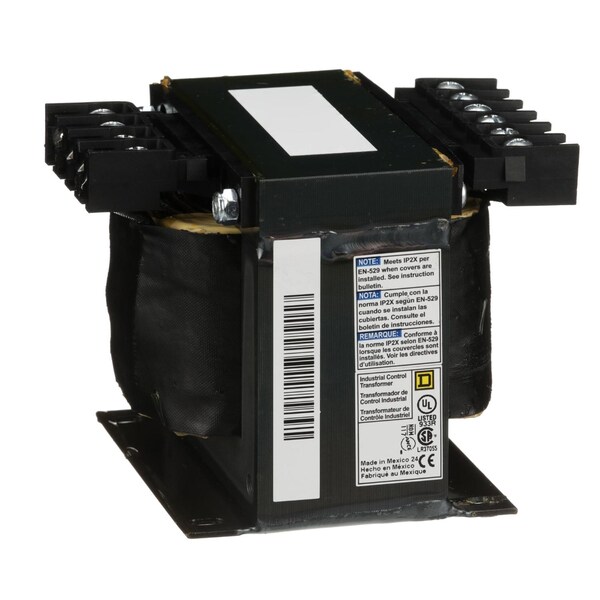

Square D Control Transformer, 250 VA, Not Rated, 99/120/130V, 240/416/480/600V 9070T250D50 - main

Control Transformer, 250 VA, Not Rated, 99/120/130V, 240/416/480/600V

  • Mfr # 9070T250D50

  • Zoro # G0859181

product price: $489.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
240/416/480/600V
Output Voltage
99/120/130V
Power Rating
250 VA
Phase
1
Hz - Electrical
50/60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070T250D50
Zoro #
G0859181
UPC #
785901327271
Country of Origin
United States

Dimensions

Overall Height
3.84 in
Overall Width
4 1/2 in
Overall Depth
5.11 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
240/416/480/600V
Output Voltage
99/120/130V
Power Rating
250 VA
Phase
1
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Standards
UL listed file E61239; CSA file LR37055 guide 184-N-90
Green Environmental Attribute
Mercury Free; Pvc Free
Material
Copper: winding
Secondary Connection
Screw clamp terminals
Winding Material - Transformer
Copper
Insulation Max. Temp.
130 °C
Enclosure Type
Open
Primary Connection
Screw clamp terminals
Primary To Secondary Voltage
240/416/480/600 V 99/120/130 V; 230/400/460/575 V 95/115/125 V; 220/380/440/550 V 90/110/120 V; 208/360/416/520 V 85/100/110 V
Insulation Temperature
266°F (130°C)
Temperature Rise
80°C
Fingersafe Cover Compatibility
FSC23
Primary Voltage
240/416/480/600 V 99/120/130 V, 230/400/460/575 V 95/115/125 V, 220/380/440/550 V 90/110/120 V, 208/360/416/520 V 85/100/110 V
Nema Degree of Protection
not rated (open device)
Rated Power In Va
250 VA UL, 250 VA CSA, 250 VA NOM, 160 VA CE
Pvc Free
Yes
Range of Product
T

Description

Trfmr Control 250Va Multiple Voltages
