  6. Control Transformer, 250 VA UL; 250 VA CSA; 250 VA NOM; 160 VA, Not Rated, 115/230V AC

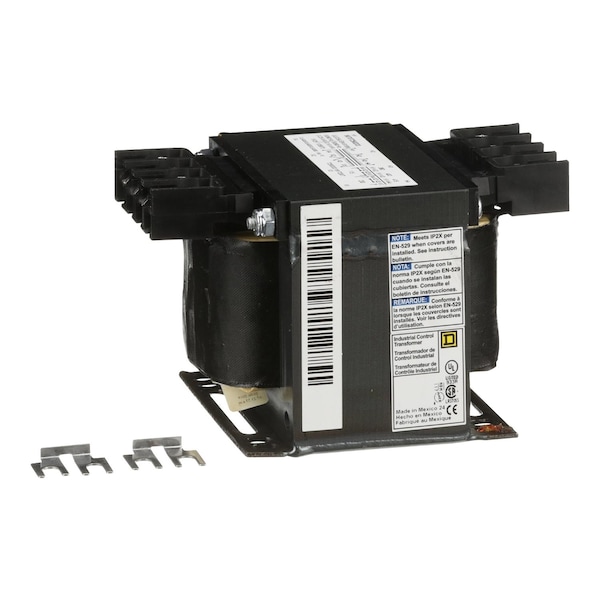

Square D Control Transformer, 250 VA UL; 250 VA CSA; 250 VA NOM; 160 VA, Not Rated, 115/230V AC 9070T250D33 - main

Control Transformer, 250 VA UL; 250 VA CSA; 250 VA NOM; 160 VA, Not Rated, 115/230V AC

  • Mfr # 9070T250D33

  • Zoro # G0857556

product price:  $220.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
380/400/415V
Output Voltage
115/230V AC
Power Rating
250 VA UL; 250 VA CSA; 250 VA NOM; 160 VA
Phase
1
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9070T250D33
Zoro #
G0857556
UPC #
785901905141
Country of Origin
Mexico

Dimensions

Overall Height
3.2 in
Overall Width
3 3/4 in
Overall Depth
5.3 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
380/400/415V
Output Voltage
115/230V AC
Power Rating
250 VA UL; 250 VA CSA; 250 VA NOM; 160 VA
Phase
1
NEMA Enclosure Rating
Not Rated
Standards
CSA file LR37055 guide 184-N-90; UL listed file E61239
Green Environmental Attribute
Mercury Free; Pvc Free
Material
copper: winding
Secondary Connection
Screw clamp terminals
Winding Material - Transformer
Copper
Insulation Max. Temp.
130 °C
Enclosure Type
Open
Primary Connection
Screw clamp terminals
Nema Degree of Protection
not rated (open device)
Product Compatibility
FSC2
Rated Power In Va
250 VA UL, 250 VA CSA, 250 VA NOM, 160 VA CE
Pvc Free
Yes
Primary Voltage
380/400/415 V 115/230 V
Insulation Temperature
130°C
Range of Product
T
Temperature Rise
80°C

Description

Xfmr Control 250Va Multiple Voltages
