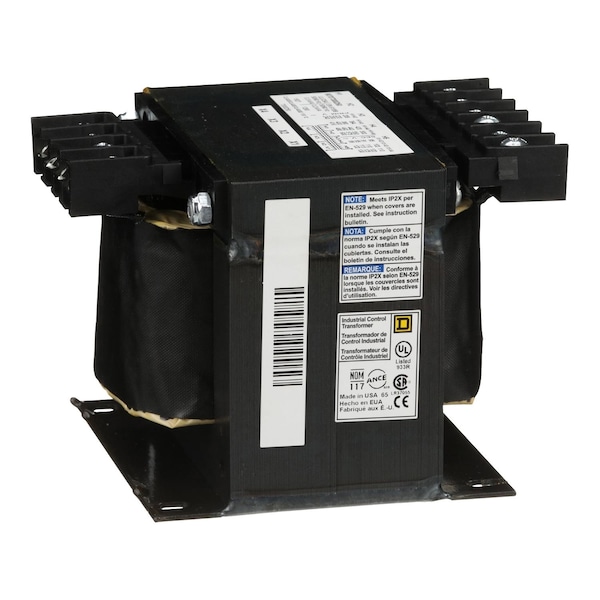

Control Transformer, 300 VA, Not Rated, 99/120/130V, 240/416/480/600V

  • Mfr # 9070T300D50

  • Zoro # G0859209

product price:
$
572.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
240/416/480/600V
Output Voltage
99/120/130V
Power Rating
300 VA
Phase
1
NEMA Enclosure Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9070T300D50
Zoro #
G0859209
UPC #
785901528135
Country of Origin
United States

Dimensions

Overall Height
3.84 in
Overall Width
4 1/2 in
Overall Depth
5.49 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
240/416/480/600V
Output Voltage
99/120/130V
Power Rating
300 VA
Phase
1
NEMA Enclosure Rating
Not Rated
Temperature Rise
80°C
Standards
UL listed file E61239; CSA file LR37055 guide 184-N-90
Green Environmental Attribute
Mercury Free; Pvc Free
Material
copper: winding
Enclosure Type
Open
Insulation Max. Temp.
130 °C
Primary Connection
Screw clamp terminals
Winding Material - Transformer
Copper
Secondary Connection
Screw clamp terminals
Nema Degree of Protection
not rated (open device)
Range of Product
T
Product Compatibility
FSC23
Insulation Temperature
130°C
Primary Voltage
240/416/480/600 V 99/120/130 V, 230/400/460/575 V 95/115/125 V, 220/380/440/550 V 90/110/120 V, 208/360/416/520 V 85/100/110 V
Pvc Free
Yes
Rated Power In Va
300 VA UL, 300 VA CSA, 300 VA NOM, 200 VA CE

Description

Trfmr Control 300Va Multiple Voltages
