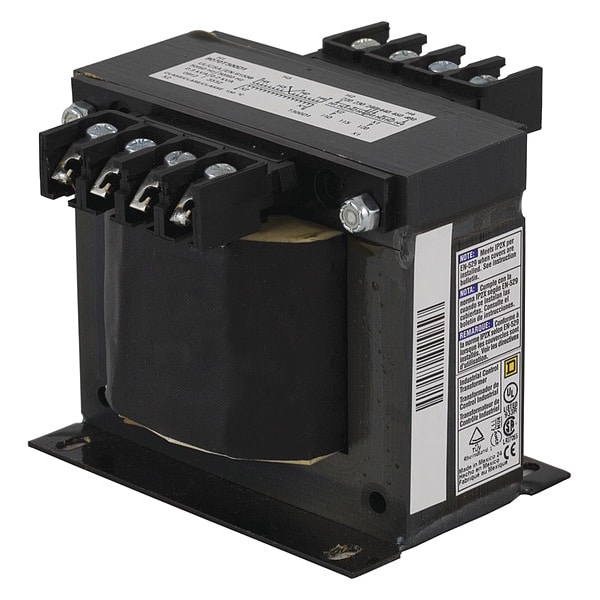

Square D Control Transformer, 350 VA, Not Rated, 120/240V, 240/480V 9070T350D31 - main

Control Transformer, 350 VA, Not Rated, 120/240V, 240/480V

  • Mfr # 9070T350D31

  • Zoro # G0859218

product price:  $358.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
240/480V
Output Voltage
120/240V
Power Rating
350 VA
Phase
1
Hz - Electrical
50/60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9070T350D31
Zoro #
G0859218
UPC #
785901689164
Country of Origin
United States

Dimensions

Overall Height
3.84 in
Overall Width
4 1/2 in
Overall Depth
5.11 in
Manufacturers Warranty Length
1 yr

Details

Item
Control Transformer
Input Voltage - Transformer
240/480V
Output Voltage
120/240V
Power Rating
350 VA
Phase
1
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
80 deg C
Green Environmental Attribute
Mercury Free; Pvc Free
Standards
UL listed file E61239; CSA file LR37055 guide 184-N-90
Enclosure Type
Open
Winding Material - Transformer
Copper
Material
copper: winding
Insulation Max. Temp.
130 °C
Primary Connection
Screw clamp terminals
Secondary Connection
Screw clamp terminals
Product Compatibility
FSC2
Rated Power In Va
350 VA UL, 350 VA CSA, 350 VA NOM, 250 VA CE
Range of Product
T
Insulation Temperature
130°C
Primary Voltage
240 x 480 V 120/240 V, 230 x 460 V 115/230 V, 220 x 440 V 110/220 V
Pvc Free
Yes
Nema Degree of Protection
not rated (open device)

Description

Trfmr Control 350Va Multiple Voltages
